Overview

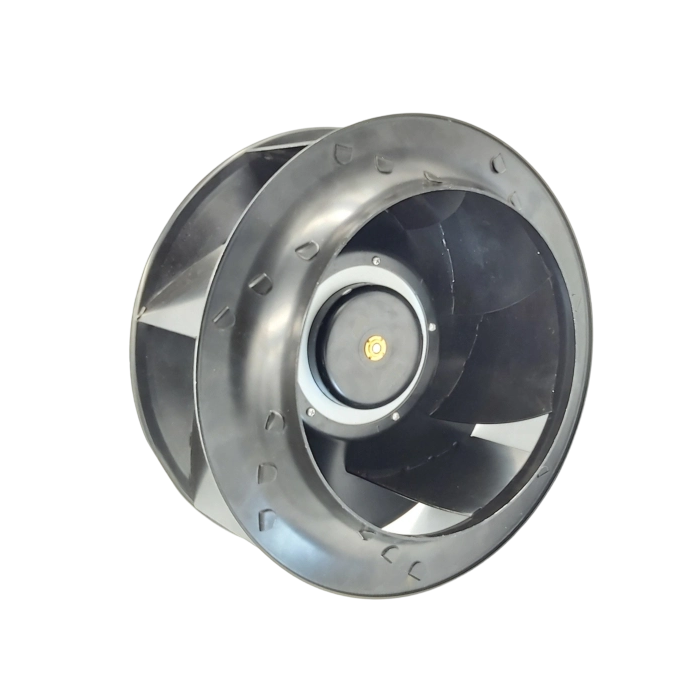

Y.S.TECH EC Backward centrifugal Fan QV2310A0MBL-9A2
- Mfr. No:QV2310A0MBL-9A2
- Brand:Y.S.TECH
- Product type:
- Datasheet:
| Brand |
Y.S.TECH |
| Type |
EC Backward centrifugal Fan |
| Series |
B310 |
| Frame Size |
Φ310mm |
| Bearing Type |
2Ball |
| Voltage |
230 VAC |
| Current |
1.25 A |
| Speed |
1500 RPM |
| Power |
130 W |
| Air Flow |
1416 CFM |
| Static Pressure |
61.468 mmH₂O |
| Noise |
66 dBA |
| Expected life |
50000 Hour at 40ºC L10 |
| Operating Temperature |
-25~60 ºC |
| Housing Material |
Impeller: Aluminum alloy with SGCC flange;Electronics housing: Die-casting aluminum;Motor shell: Steel, electro deposited black |
| Insulation class |
B |
