Y.S.TECH Fans QV228080MBL-9A2

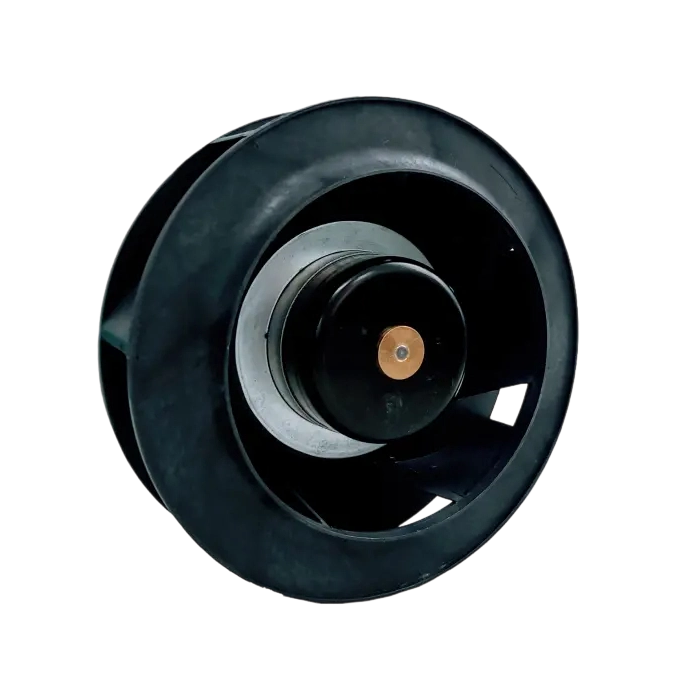

Y.S.TECH QV228080MBL-9A2 Φ280mm B280 Series EC Backward centrifugal Fan
- SKU
- YHF-1665
There is no price at present, please contact us.
More Information
| Brand | Y.S.TECH |
|---|---|
| Model Number | QV228080MBL-9A2 |
| Type | EC Backward centrifugal Fan |
| Series | B280 |
| Frame Size | Φ280mm |
| Bearing Type | 2Ball |
| Voltage | 230 VAC |
| Current | 1.74 A |
| Speed | 2300 RPM |
| Power | 200 W |
| Air Flow | 1448 CFM |
| Static Pressure | 91.84 mmH₂O |
| Noise | 72 dBA |
| Expected life | 50000 Hour at 40ºC L10 |
| Operating Temperature | -25~60 ºC |
| Housing Material | Impeller: Hot-dip galvanized sheet steel (SGCC);Electronics housing: Die-casting aluminum;Motor shell: Steel, electro deposited black |
| Insulation class | B |
