Y.S.TECH Fans QV222563HBL-9A2

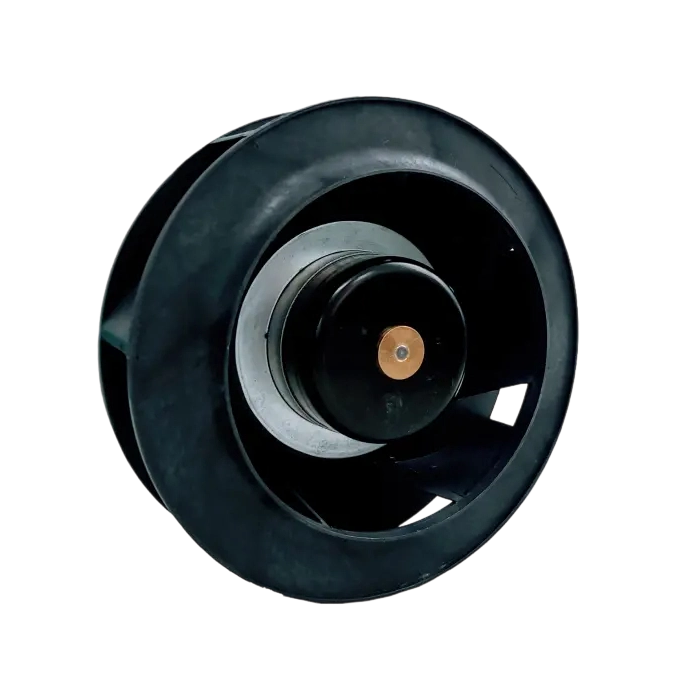

Y.S.TECH QV222563HBL-9A2 Φ225mm B225-92 Series EC Backward centrifugal Fan
- SKU
- YHF-1663
There is no price at present, please contact us.
More Information
| Brand | Y.S.TECH |
|---|---|
| Model Number | QV222563HBL-9A2 |
| Type | EC Backward centrifugal Fan |
| Series | B225-92 |
| Frame Size | Φ225mm |
| Bearing Type | 2Ball |
| Voltage | 230 VAC |
| Current | 0.85 A |
| Speed | 3400 RPM |
| Power | 200 W |
| Air Flow | 931 CFM |
| Static Pressure | 106 mmH₂O |
| Noise | 74.5 dBA |
| Expected life | 50000 Hour at 40ºC L10 |
| Operating Temperature | -25~60 ºC |
| Housing Material | Impeller: Glass fiber-reinforced polypropylene;Electronics housing: Die-casting aluminum;Motor shell: Steel, electro deposited black |
| Insulation class | B |
