Overview

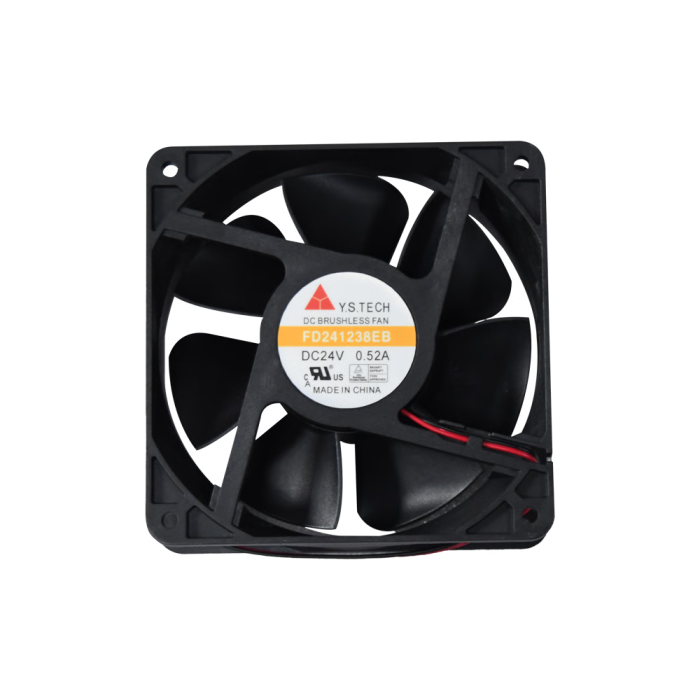

Y.S.TECH DC Axial Fan FD1238 Series FD241238EB
- Mfr. No:FD241238EB
- Brand:Y.S.TECH
- Product type:
- Datasheet:
| Brand |
Y.S.TECH |
| Type |
DC Axial Fan |
| Series |
FD1238 |
| Frame Size |
120x120x38mm |
| Bearing Type |
2Ball |
| Voltage |
24 V |
| Current |
0.41 A |
| Speed |
3000 RPM |
| Power |
9.84 W |
| Air Flow |
135 CFM |
| Static Pressure |
8.6 mmH₂O |
| Noise |
47 dBA |
| Expected life |
65000 Hour at 40ºC L10 |
| Terminals |
UL1007 #22 AWG |
| Housing Material |
Blade/Housing:Plastic Material UL 94V-0 P.B.T. |
