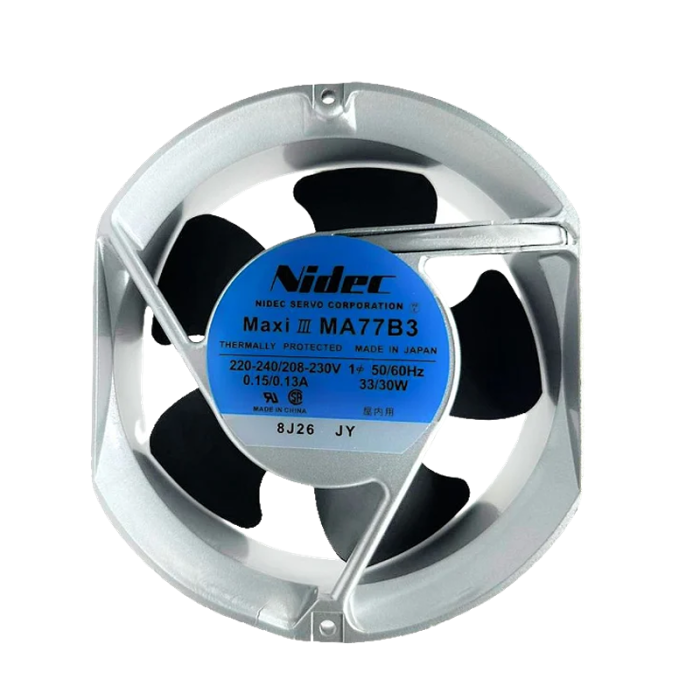

SERVO Fans MA77B3
More Information
| Brand | Servo |
|---|---|
| Model Number | MA77B3 |
| Type | AC Axial Fans |
| Series | MA |
| Frame Size | Ф172x150x51mm |
| Bearing Type | Double-sided shielded ball bearing |
| Voltage | 220-240/208-230 V |
| Current | 150/130 mA |
| Speed | 2850/3400 RPM |
| Power | 33/30 W |
| Air Flow | 194/229 CFM |
| Static Pressure | 0.61/0.75 InH₂O |
| Noise | 50/55 dBA |
| Operating Temperature | -20~+60ºC |
| Frequency | 50/60 Hz |
| Housing Material | Venturi: Aluminum alloy die casting;Propeller: ABS and PBT synthetic resins;Capacitor cover: Glass fiber reinforced polycarbonate resin;Capacitor: MF capacitor |
