Sanyo Denki Fans 9B1TS48P0G001

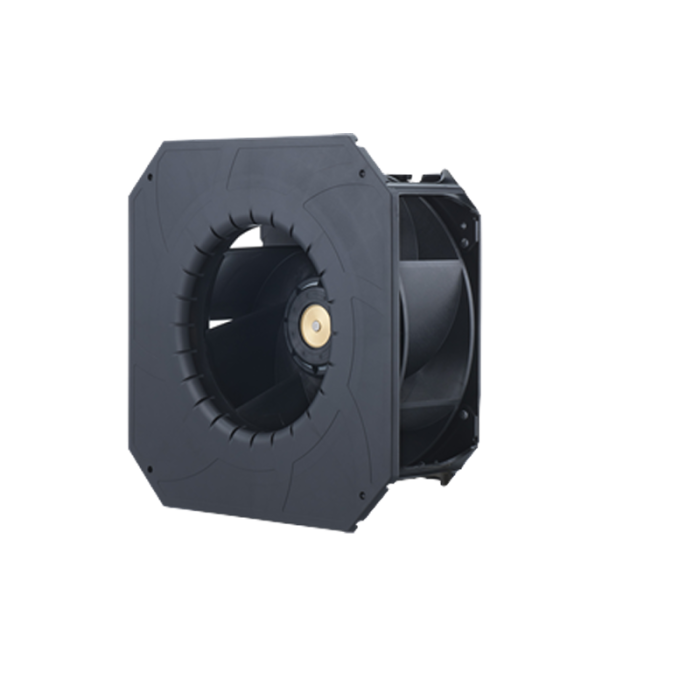

Sanyo Denki 9B1TS48P0G001 Square-270mm Lx270mm H San Ace C225 Series Centrifugal Fan
- SKU
- SIF-045
There is no price at present, please contact us.
More Information
| Brand | Sanyo Denki |
|---|---|
| Model Number | 9B1TS48P0G001 |
| Type | Centrifugal Fan |
| Series | San Ace C225 |
| Frame Size | Square-270mm Lx270mm H |
| Voltage | 48VDC |
| Current | 3.65 A |
| Speed | 3550 RPM |
| Power | 175.2 W |
| Air Flow | 992 CFM |
| Static Pressure | 3.46 InH₂O |
| Noise | 74.5 dBA |
| Expected life | 40000/60ºC（70000/40ºC） |
| Operating Temperature | -20~60ºC |
| Housing Material | Motor case: Aluminum (Black coating);Impeller: Plastic (Flammability: UL 94V-0);Bracket: Aluminum, Plastic (Flammability: UL 94V-0) |
