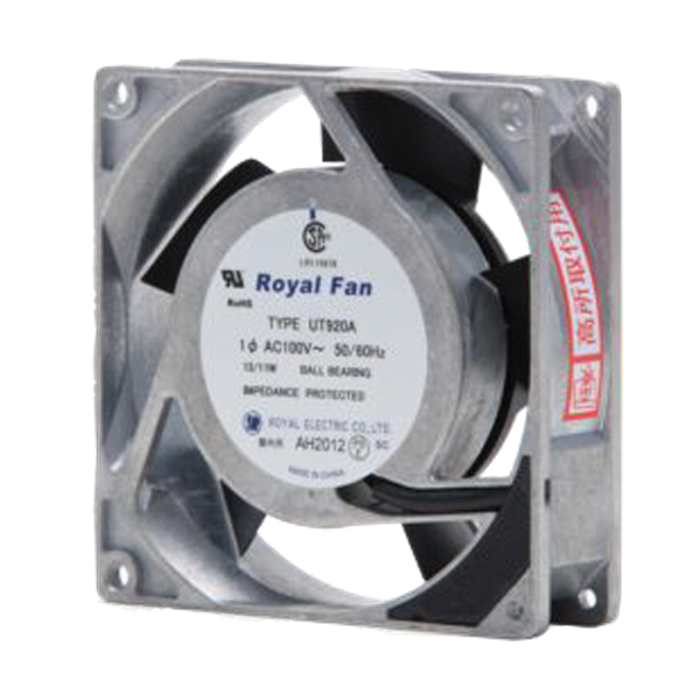

ROYAL Fans UT186K-2TP（Single-phase）
ROYAL UT186K-2TP（Single-phase） 92x25/180x90mm T920A/UT180K Series Axial Flow Fan with Resin Blades
- SKU
- RLF-212
There is no price at present, please contact us.
More Information
| Brand | ROYAL |
|---|---|
| Model Number | UT186K-2TP（Single-phase） |
| Type | Axial Flow Fan with Resin Blades |
| Series | T920A/UT180K |
| Frame Size | 92x25/180x90mm |
| Bearing Type | Precision Ball Bearing |
| Voltage | 100/115/120/200/220 V |
| Current | 0.15/0.13/0.12/0.07/0.06/0.26/0.27/0.35/0.34/0.33/0.1/0.06/0.05 A |
| Speed | 2550/2850/3250/3300/3350/3050 RPM |
| Power | 12/11/51/58/68/72/73/10/9 W |
| Air Flow | 0.9/11/11.2/12.5/13/1 m³/min |
| Static Pressure | 49/210/220/270/280/68 Pa |
| Noise | 33/56/57/60/61/36 dBA |
| Frequency | 50/60 Hz |
