Overview

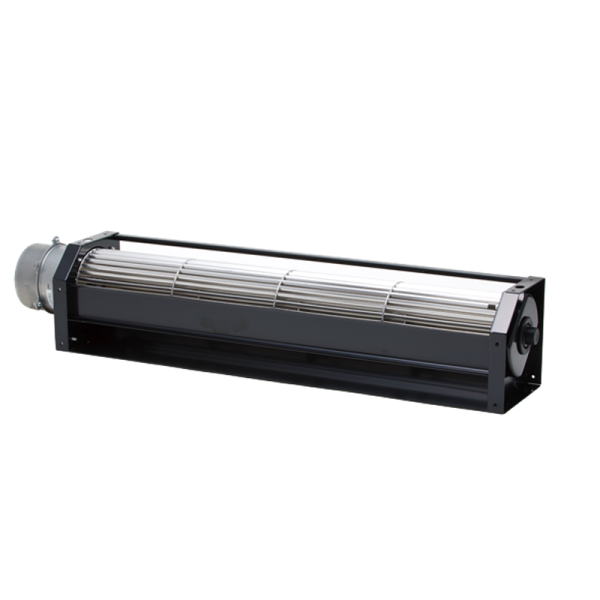

ROYAL AC Standard Type Cross Fans FM-90 Series FM-09036
- Mfr. No:FM-09036
- Brand:ROYAL
- Product type:
- Datasheet:
| Brand |
ROYAL |
| Type |
AC Standard Type Cross Fan |
| Series |
FM-90 |
| Frame Size |
Ф90mm |
| Bearing Type |
Motor side: Ball; Opposite side: Oilless Metal(Ball Bearing specification available for some models) |
| Voltage |
100 V |
| Current |
0.25/0.28 A |
| Speed |
1150/1250 RPM |
| Power |
23/27 W |
| Air Flow |
5.6/6.0 m³/min |
| Static Pressure |
23/30 Pa |
| Noise |
42/45 dBA |
| Operating Temperature |
Temperature:0ºC~+40ºC;Humidity:≤90%RH |
| Frequency |
50/60 Hz |
