Overview

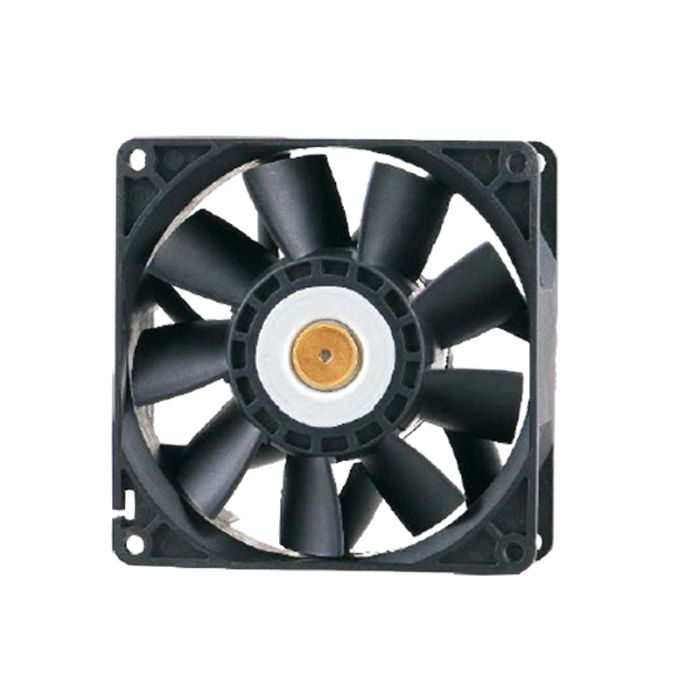

Protechnic DC Fans 92x92x38 C/D Series MGT9224YB-O38
- Mfr. No:MGT9224YB-O38
- Brand:Protechnic
- Product type:
- Datasheet:
| Brand |
Protechnic |
| Type |
DC Fans |
| Series |
92x92x38 C/D |
| Frame Size |
92x92x38mm |
| Bearing Type |
2Ball |
| Voltage |
24 V |
| Current |
0.7 A |
| Speed |
5400/7800 RPM |
| Power |
16.8 W |
| Air Flow |
133.63/113.97 CFM |
| Static Pressure |
0.878/1.465 InAq |
| Noise |
58.1/58.8 dBA |
| Approval Agency |
UL,TUV,CE |
| Expected life |
>40,000 hours at 60ºC |
| Operating Temperature |
-10ºC~70ºC(5%～90% RH) |
| Housing Material |
Frame:Resin (UL 94V-0);Blades:Resin (UL 94V-0) |
| Frame |
Flange |
