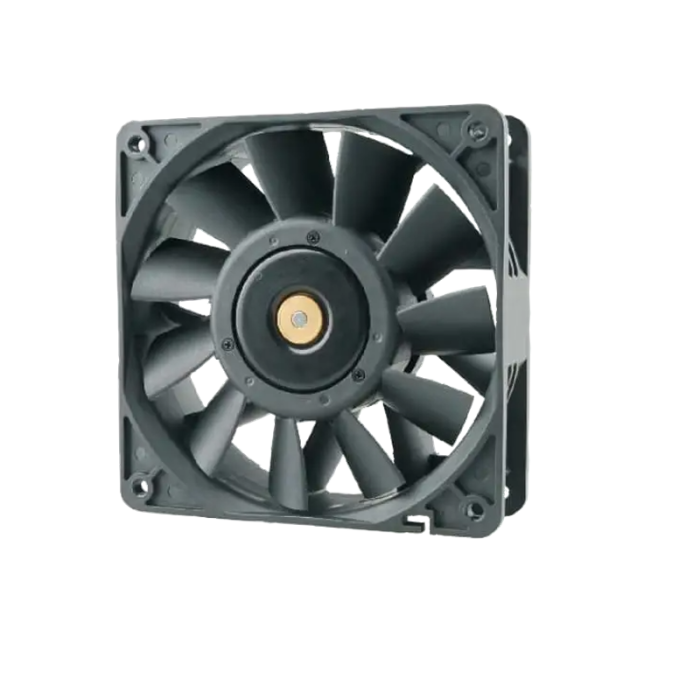

Protechnic Fans MGT12024YB-R38
More Information
| Brand | Protechnic |
|---|---|
| Model Number | MGT12024YB-R38 |
| Type | DC Fans |
| Series | 120x120x38 A/F/G |
| Frame Size | 120x120x38mm |
| Bearing Type | 2Ball |
| Voltage | 24 V |
| Current | 0.46/1.08/0.46 A |
| Speed | 2700/4000/4000 RPM |
| Power | 11.04/23.04/11.04 W |
| Air Flow | 124.7/189.63/131.1 CFM |
| Static Pressure | 0.272/0.762/0.519 InAq |
| Noise | 44.8/59/49.8 dBA |
| Approval Agency | UL,TUV,CE |
| Expected life | >40,000 hours at 60ºC |
| Operating Temperature | -10ºC~70ºC(5%～90% RH) |
| Housing Material | Frame:Resin (UL 94V-0);Blades:Resin (UL 94V-0) |
| Frame | Flange |
