Pelko Motors Fans D6026Z48BPLBxy-7

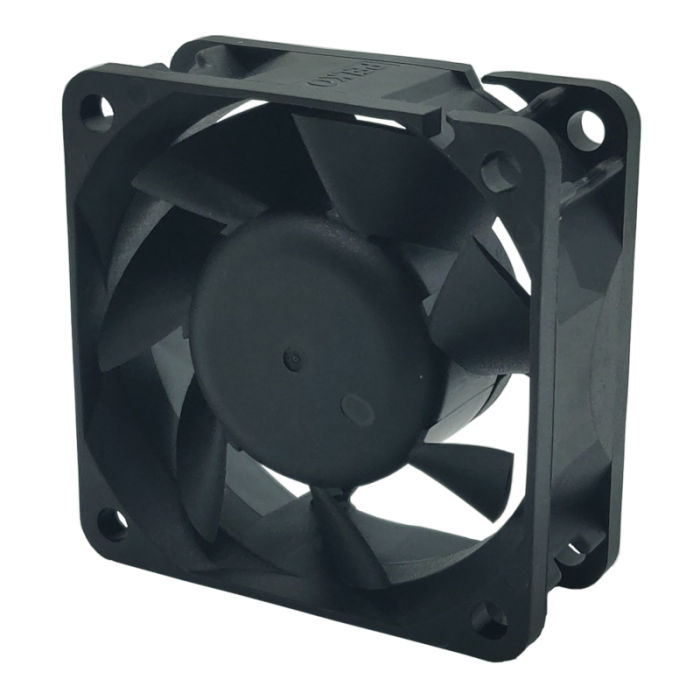

Pelko Motors D6026Z48BPLBxy-7 60x60x25mm C/D Series DC Axial Fans
- SKU
- PSF-323
There is no price at present, please contact us.
More Information
| Brand | Pelko Motors |
|---|---|
| Model Number | D6026Z48BPLBxy-7 |
| Type | DC Axial Fans |
| Series | C/D |
| Frame Size | 60x60x25mm |
| Bearing Type | 2Ball, Long Life Sleeve Bearing(SBS) |
| Voltage | 48 VDC |
| Current | 0.235 A |
| Speed | 9000 RPM |
| Power | 11.28 W |
| Air Flow | 47.4 CFM |
| Static Pressure | 0.89 InH?O |
| Noise | 54.1 dBA |
| Terminals | UL 1007, AWG 24 |
| Leadwire length | 270±10mm, Red(+), Black(-) |
| IP rating | IP51, IP54, IP56, IP67 |
| Housing Material | Impeller:Thermoplastic PBT+15% GF, UL94-V0;Frame:Thermoplastic PBT+30% GF, UL94-V0 |
