Pelko Motors Fans D4015H24BPLPxy-5

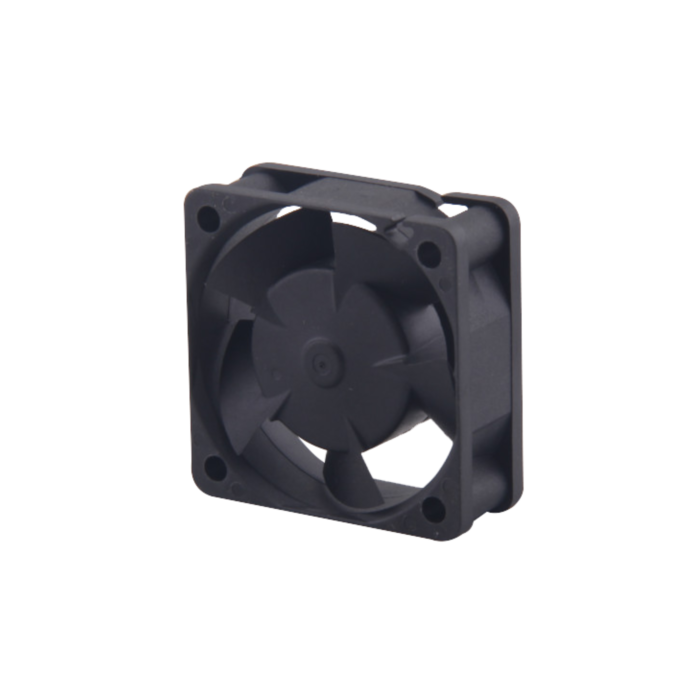

Pelko Motors D4015H24BPLPxy-5 40x40x15mm D Series DC Axial Fans
- SKU
- PSF-057
There is no price at present, please contact us.
More Information
| Brand | Pelko Motors |
|---|---|
| Model Number | D4015H24BPLPxy-5 |
| Type | DC Axial Fans |
| Series | D |
| Frame Size | 40x40x15mm |
| Bearing Type | 2Ball, Long Life Sleeve Bearing(SBS) |
| Voltage | 24 VDC |
| Current | 0.055 A |
| Speed | 7000 RPM |
| Power | 1.32 W |
| Air Flow | 8.81 CFM |
| Static Pressure | 0.23 InH?O |
| Noise | 28.3 dBA |
| Terminals | UL 1007, AWG 26 |
| Leadwire length | 280±10mm, Red(+), Black(-) |
| IP rating | IP51, IP54, IP56, IP67 |
| Housing Material | Impeller:Thermoplastic PBT+15% GF, UL94-V0;Frame:Thermoplastic PBT+30% GF, UL94-V0 |
