Pelko Motors Fans D4010L12BPLPxy-5

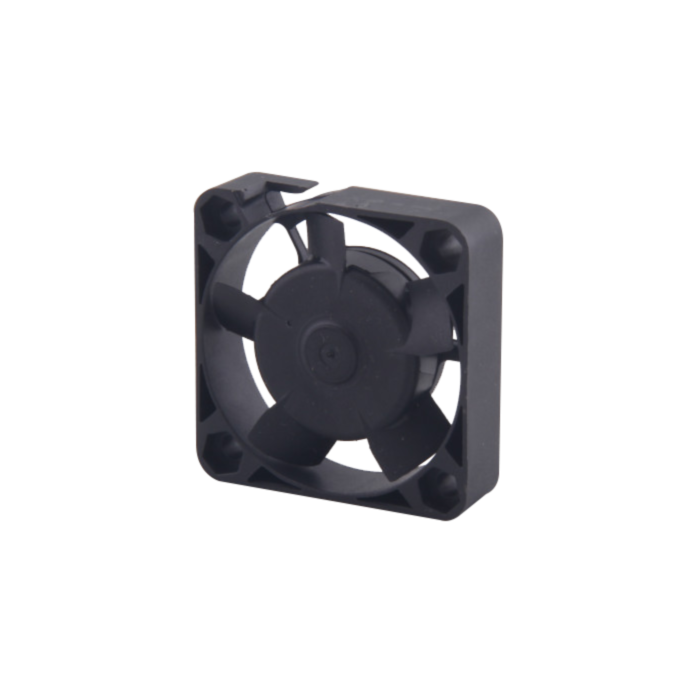

Pelko Motors D4010L12BPLPxy-5 40x40x10mm D Series DC Axial Fans
- SKU
- PSF-023
There is no price at present, please contact us.
More Information
| Brand | Pelko Motors |
|---|---|
| Model Number | D4010L12BPLPxy-5 |
| Type | DC Axial Fans |
| Series | D |
| Frame Size | 40x40x10mm |
| Bearing Type | 2Ball, Long Life Sleeve Bearing(SBS) |
| Voltage | 12 VDC |
| Current | 0.032 A |
| Speed | 4400 RPM |
| Power | 0.38 W |
| Air Flow | 4.31 CFM |
| Static Pressure | 0.06 InH?O |
| Noise | 13.3 dBA |
| Terminals | UL 1007, AWG 26 |
| Leadwire length | 280±10mm, Red(+), Black(-) |
| IP rating | IP51, IP54, IP56 |
| Housing Material | Impeller:Thermoplastic PBT+15% GF, UL94-V0;Frame:Thermoplastic PBT+30% GF, UL94-V0 |
