Pelko Motors Fans D3510AM05BPLBxy-5

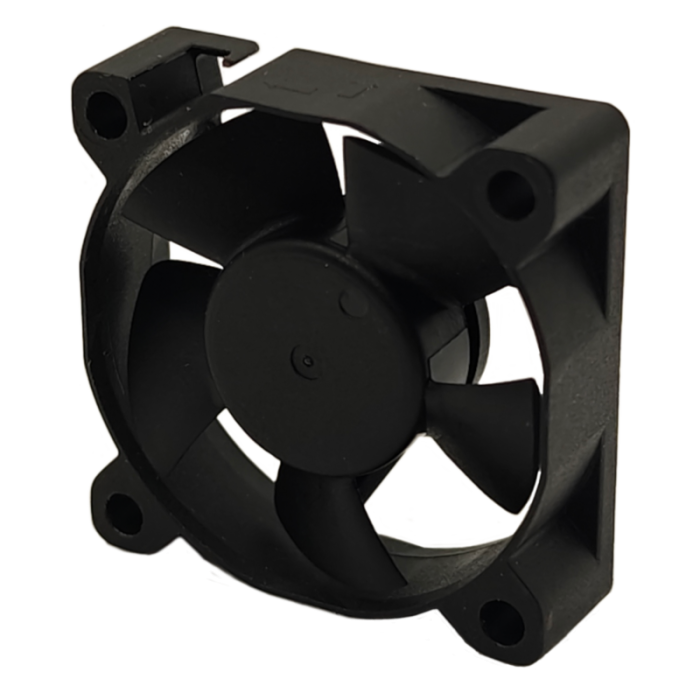

Pelko Motors D3510AM05BPLBxy-5 35x35x10mm D Series DC Axial Fans
- SKU
- PSF-1019
There is no price at present, please contact us.
More Information
| Brand | Pelko Motors |
|---|---|
| Model Number | D3510AM05BPLBxy-5 |
| Type | DC Axial Fans |
| Series | D |
| Frame Size | 35x35x10mm |
| Bearing Type | 2Ball |
| Voltage | 5 VDC |
| Current | 0.22 A |
| Speed | 10000 RPM |
| Power | 1.1 W |
| Air Flow | 7.01 CFM |
| Static Pressure | 0.18 InH?O |
| Noise | 33.8 dBA |
| Terminals | UL 1061, AWG 28 |
| Leadwire length | 235±10mm, Red(+), Black(-) |
| IP rating | IP51, IP54, IP56 |
| Housing Material | Impeller:Thermoplastic PBT+15% GF, UL94-V0;Frame:Thermoplastic PBT+30% GF, UL94-V0 |
