Pelko Motors Fans C8026L12BPLPxy-7

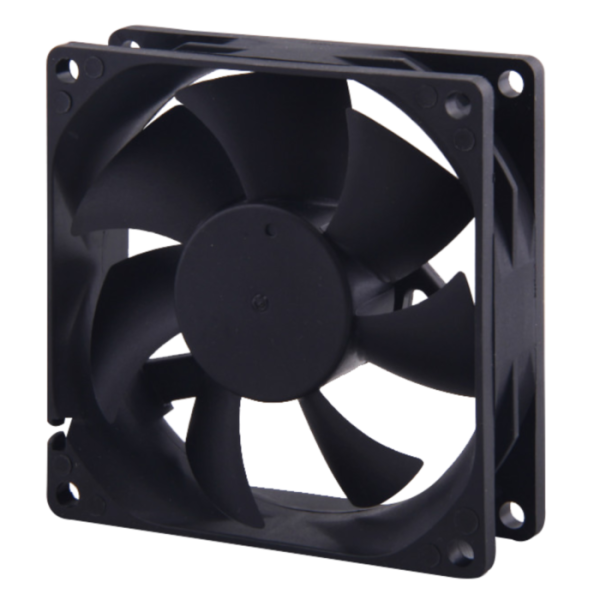

Pelko Motors C8026L12BPLPxy-7 80x80x25mm C/R Series DC Axial Fans
- SKU
- PSF-453
There is no price at present, please contact us.
More Information
| Brand | Pelko Motors |
|---|---|
| Model Number | C8026L12BPLPxy-7 |
| Type | DC Axial Fans |
| Series | C/R |
| Frame Size | 80x80x25mm |
| Bearing Type | 2Ball, Long Life Sleeve Bearing(SBS) |
| Voltage | 12 VDC |
| Current | 0.09 A |
| Speed | 2200 RPM |
| Power | 1.08 W |
| Air Flow | 31.54 CFM |
| Static Pressure | 0.08 InH?O |
| Noise | 23.5 dBA |
| Terminals | UL 1007, AWG 24 |
| Leadwire length | 265±10mm, Red(+), Black(-) |
| IP rating | IP51, IP54, IP56, IP67 |
| Housing Material | Impeller:Thermoplastic PBT+15% GF, UL94-V0;Frame:Thermoplastic PBT+30% GF, UL94-V0 |
