Overview

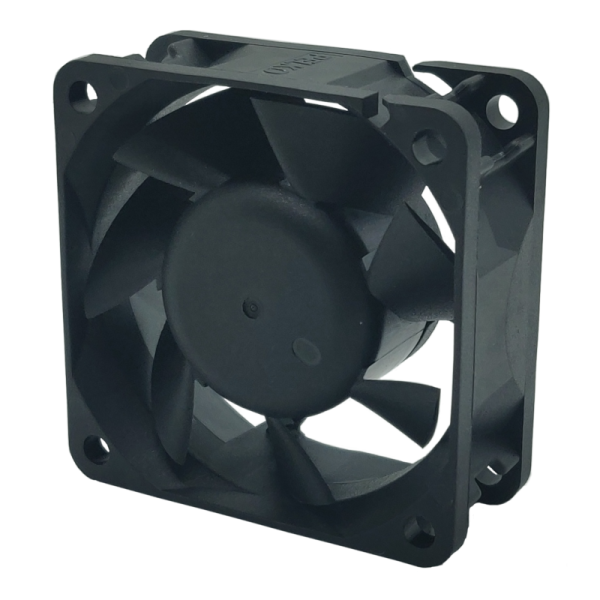

Pelko Motors DC Axial Fans C/D Series C6026H24BPLPxy-7
- Mfr. No:C6026H24BPLPxy-7
- Brand:Pelko Motors
- Product type:
- Datasheet:
| Brand |
Pelko Motors |
| Type |
DC Axial Fans |
| Series |
C/D |
| Frame Size |
60x60x25mm |
| Bearing Type |
2Ball, Long Life Sleeve Bearing(SBS) |
| Voltage |
24 VDC |
| Current |
0.24 A |
| Speed |
6800 RPM |
| Power |
5.76 W |
| Air Flow |
35.81 CFM |
| Static Pressure |
0.51 InH?O |
| Noise |
46.4 dBA |
| Terminals |
UL 1007, AWG 24 |
| Leadwire length |
270±10mm, Red(+), Black(-) |
| IP rating |
IP51, IP54, IP56, IP67 |
| Housing Material |
Impeller:Thermoplastic PBT+15% GF, UL94-V0;Frame:Thermoplastic PBT+30% GF, UL94-V0 |
