Pelko Motors Fans C4010M05BPLPxy-7

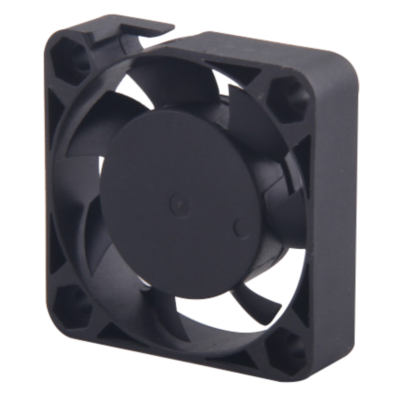

Pelko Motors C4010M05BPLPxy-7 40x40x10mm C/D Series DC Axial Fans
- SKU
- PSF-030
There is no price at present, please contact us.
More Information
| Brand | Pelko Motors |
|---|---|
| Model Number | C4010M05BPLPxy-7 |
| Type | DC Axial Fans |
| Series | C/D |
| Frame Size | 40x40x10mm |
| Bearing Type | 2Ball, Long Life Sleeve Bearing(SBS) |
| Voltage | 5 VDC |
| Current | 0.1 A |
| Speed | 5500 RPM |
| Power | 0.5 W |
| Air Flow | 4.82 CFM |
| Static Pressure | 0.11 InH?O |
| Noise | 24.17 dBA |
| Terminals | UL 1007, AWG 26 |
| Leadwire length | 280±10mm, Red(+), Black(-) |
| IP rating | IP51, IP54, IP56 |
| Housing Material | Impeller:Thermoplastic PBT+15% GF, UL94-V0;Frame:Thermoplastic PBT+30% GF, UL94-V0 |
