Overview

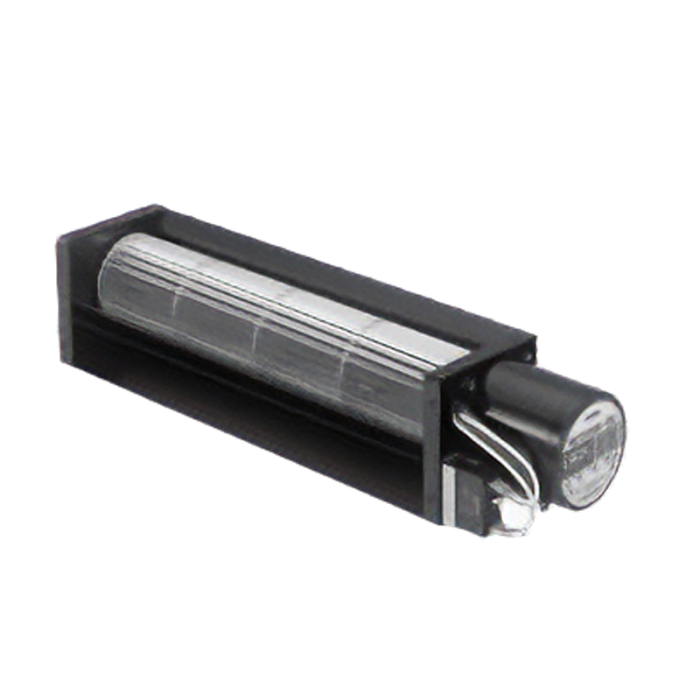

ORIX AC Cross Flow Fans MF930 Series MF930B-BC
- Mfr. No:MF930B-BC
- Brand:ORIX
- Product type:
- Datasheet:
| Brand |
ORIX |
| Type |
AC Cross Flow Fans |
| Series |
MF930 |
| Frame Size |
Impeller Length 300mm |
| Bearing Type |
Ball |
| Voltage |
Single-Phase100/110/115 VAC |
| Current |
0.40/0.50/0.50 A |
| Speed |
2500/2700/2950/3000 RPM |
| Power |
35/45/48/50 W |
| Air Flow |
6.0/6.2/6.6/6.8 m³/min |
| Static Pressure |
74/103/106/106 Pa |
| Noise |
58/60/62/63 dBA |
| Frequency |
50/60 Hz |
| Housing Material |
Motor Case:Die Cast Aluminum;Casing:Steel;Impeller:Aluminum |
