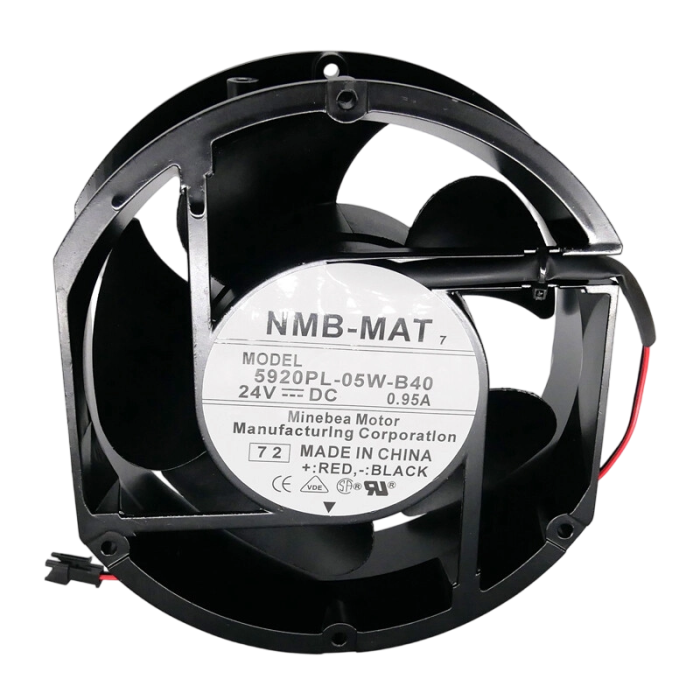

NMB Fans 5920PL-05W-B40-D00
NMB 5920PL-05W-B40-D00 172x150x50.8mm 5920PL Series DC Axial Fans
- SKU
- NBF-2522
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 5920PL-05W-B40-D00 |
| Type | DC Axial Fans |
| Product Number | Standard Model Flange Type |
| Series | 5920PL |
| Frame Size | 172x150x50.8mm |
| Bearing Type | Ball |
| Voltage | 24 V |
| Current | 0.8 A |
| Speed | 3350 RPM |
| Power | 15.8 W |
| Air Flow | 240 CFM |
| Static Pressure | 0.57 InH?O |
| Noise | 58 dBA |
| Expected life | 25oC 100,000 Hours |
| Terminals | UL1007, AWG22, +Red, -Black |
| Operating Temperature | -10oC~+70oC |
| Housing Material | Casing:Aluminum (Black);Impeller:Plastic (Black) 94V-0 |
