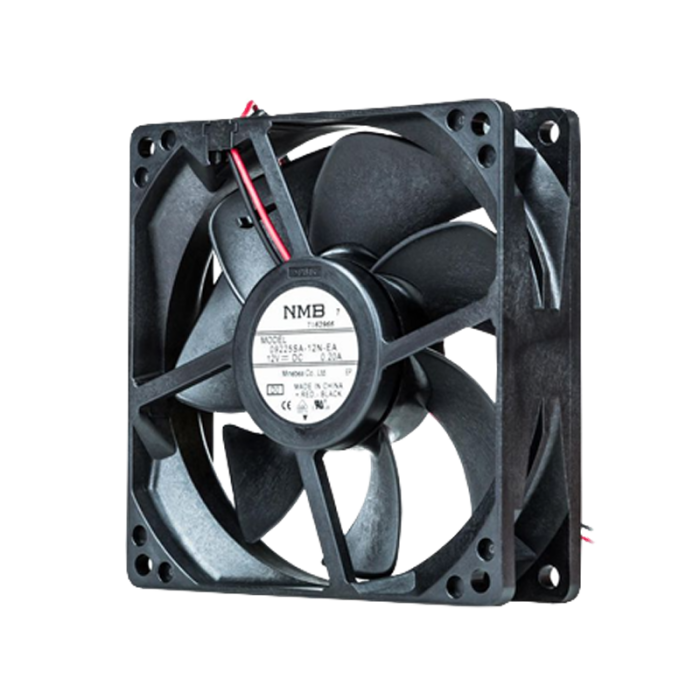

NMB Fans 09225SA-24M-AA-D0
More Information
| Brand | NMB |
|---|---|
| Model Number | 09225SA-24M-AA-D0 |
| Type | DC Axial Fans |
| Series | 09225SA |
| Frame Size | 92x25mm |
| Bearing Type | Ball |
| Voltage | 24 V |
| Current | 0.07 A |
| Speed | 2750 RPM |
| Power | 1.68 W |
| Air Flow | 45.2 CFM |
| Static Pressure | 0.14 InH₂O |
| Noise | 29 dBA |
| Expected life | 60ºC 40,000 Hours |
| Terminals | UL3385, AWG26, +Red, -Black |
| Operating Temperature | -10ºC~+70ºC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
