NMB Fans 08025VE-24M-CAD-0

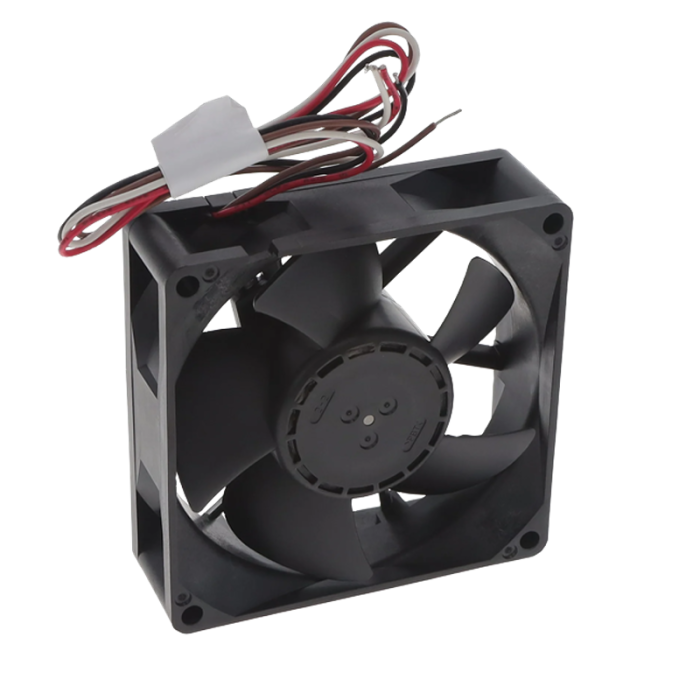

NMB 08025VE-24M-CAD-0 80x80x25mm 08025VE Potting Ⅱ Series DC Axial Fans/Harsh or Wet Environment Fans
- SKU
- NBF-1617
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 08025VE-24M-CAD-0 |
| Type | DC Axial Fans/Harsh or Wet Environment Fans |
| Series | 08025VE Potting Ⅱ |
| Frame Size | 80x80x25mm |
| Bearing Type | Ball |
| Voltage | 24 V |
| Current | 0.12 A |
| Speed | 5000 RPM |
| Power | 2.88 W |
| Air Flow | 52.2 CFM |
| Static Pressure | 0.38 InH?O |
| Noise | 43 dBA |
| Expected life | 60oC 40,000 Hours |
| Terminals | UL3385, AWG26, +Red, -Black |
| IP rating | IP68 |
| Operating Temperature | -10oC~+60oC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
