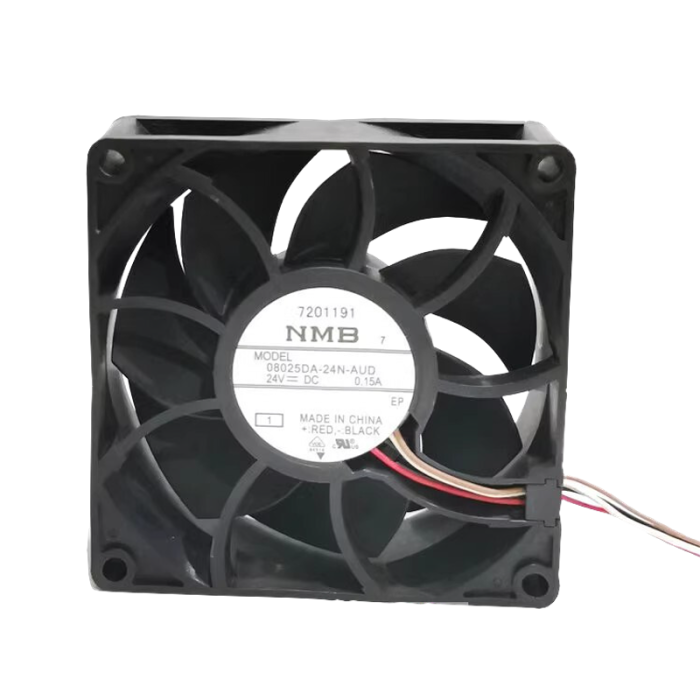

NMB Fans 08025DA-24N-AAD-0
NMB 08025DA-24N-AAD-0 80x25mm 08025DA（D-Type） Series DC Axial Fans
- SKU
- NBF-1613
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 08025DA-24N-AAD-0 |
| Type | DC Axial Fans |
| Series | 08025DA（D-Type） |
| Frame Size | 80x25mm |
| Bearing Type | Ball |
| Voltage | 24 V |
| Current | 0.11 A |
| Speed | 5250 RPM |
| Power | 2.64 W |
| Air Flow | 49.5 CFM |
| Static Pressure | 0.37 InH?O |
| Noise | 42 dBA |
| Expected life | 40oC 70,000 Hours |
| Terminals | UL10368, AWG24, +Red, -Black |
| Operating Temperature | -10oC~+70oC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
