NMB Fans 06025VE-24M-CAD-0

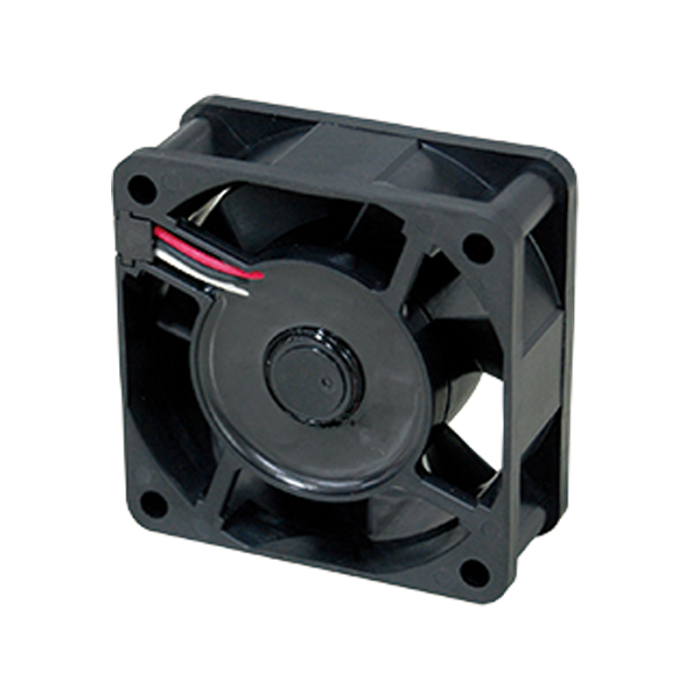

NMB 06025VE-24M-CAD-0 60x60x25mm 06025VE Potting Ⅱ Series DC Axial Fans/Harsh or Wet Environment Fans
- SKU
- NBF-1594
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 06025VE-24M-CAD-0 |
| Type | DC Axial Fans/Harsh or Wet Environment Fans |
| Series | 06025VE Potting Ⅱ |
| Frame Size | 60x60x25mm |
| Bearing Type | Ball |
| Voltage | 24 V |
| Current | 0.1 A |
| Speed | 6000 RPM |
| Power | 2.4 W |
| Air Flow | 24 CFM |
| Static Pressure | 0.42 InH₂O |
| Noise | 42 dBA |
| Expected life | 60ºC 40,000 Hours |
| Terminals | UL3385, AWG26, +Red, -Black |
| IP rating | IP68 |
| Operating Temperature | -10ºC~+70ºC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
