NMB Fans 06025VC-24Q-WA-A0

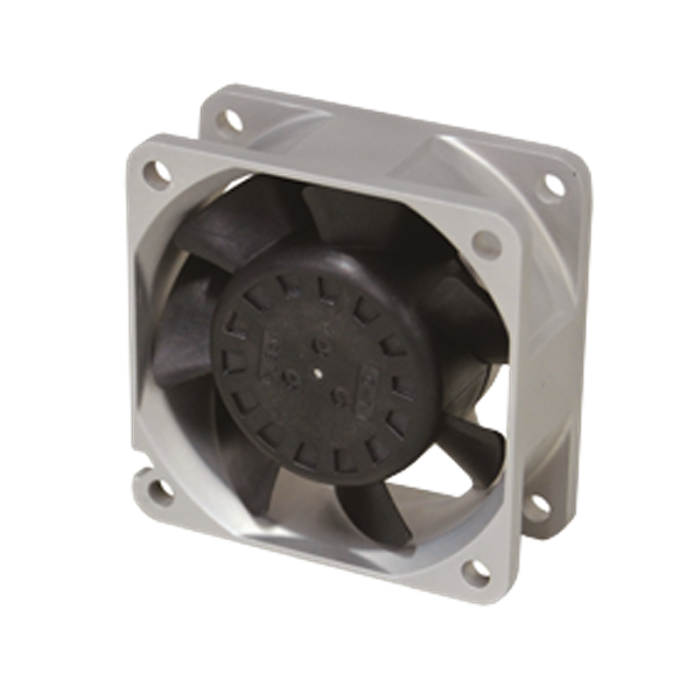

NMB 06025VC-24Q-WA-A0 60x25mm 06025VC Aluminum Series DC Axial Fans
- SKU
- NBF-1604
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 06025VC-24Q-WA-A0 |
| Type | DC Axial Fans |
| Series | 06025VC Aluminum |
| Frame Size | 60x25mm |
| Bearing Type | Ball |
| Voltage | 24 V |
| Current | 0.25 A |
| Speed | 9200 RPM |
| Power | 6 W |
| Air Flow | 38.5 CFM |
| Static Pressure | 0.94 InH₂O |
| Noise | 53 dBA |
| Expected life | 85ºC 40,000 Hours |
| Terminals | UL3266, AWG24, +Red, -Black |
| Operating Temperature | -10ºC~+85ºC |
| Housing Material | Casing : Aluminum；Impeller : Plastic (Black)UL94V-0 |
