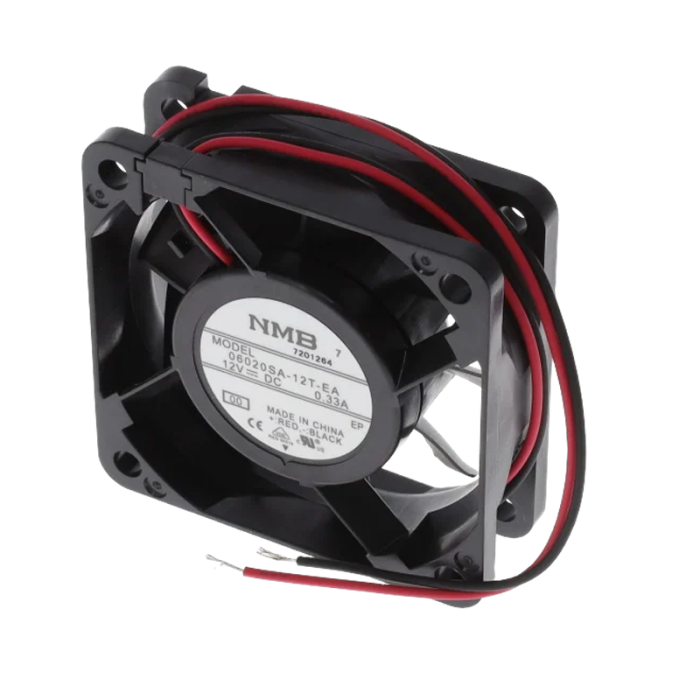

NMB Fans 06020SA-24L-EA-00
More Information
| Brand | NMB |
|---|---|
| Model Number | 06020SA-24L-EA-00 |
| Type | DC Axial Fans |
| Series | 06020SA/2408SB |
| Frame Size | 60x20mm |
| Bearing Type | Ball |
| Voltage | 24 V |
| Current | 0.05 A |
| Speed | 3600 RPM |
| Power | 1.2 W |
| Air Flow | 16.6 CFM |
| Static Pressure | 0.14 InH₂O |
| Noise | 26 dBA |
| Expected life | 60ºC 40,000 Hours |
| Terminals | UL3385, AWG26, +Red, -Black |
| Operating Temperature | -10ºC~+70ºC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
