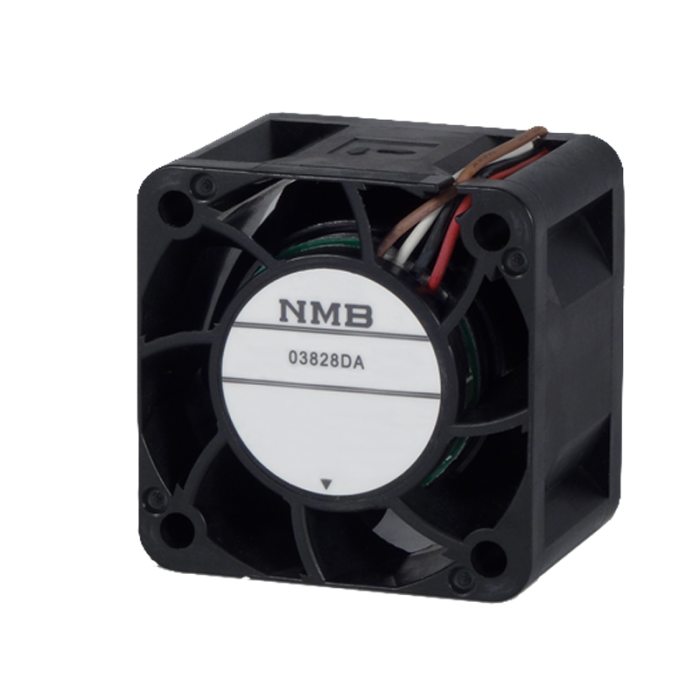

NMB Fans 03828DA-12R-AA-00
More Information
| Brand | NMB |
|---|---|
| Model Number | 03828DA-12R-AA-00 |
| Type | DC Axial Fans |
| Series | 03828DA/1511FB |
| Frame Size | 38x28mm |
| Bearing Type | Ball |
| Voltage | 12 V |
| Current | 0.63 A |
| Speed | 22000 RPM |
| Power | 7.56 W |
| Air Flow | 21.4 CFM |
| Static Pressure | 2.61 InH?O |
| Noise | 58 dBA |
| Expected life | 40oC 70,000 Hours |
| Terminals | UL10368, AWG26, +Red, -Black |
| Operating Temperature | -10oC~+70oC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
