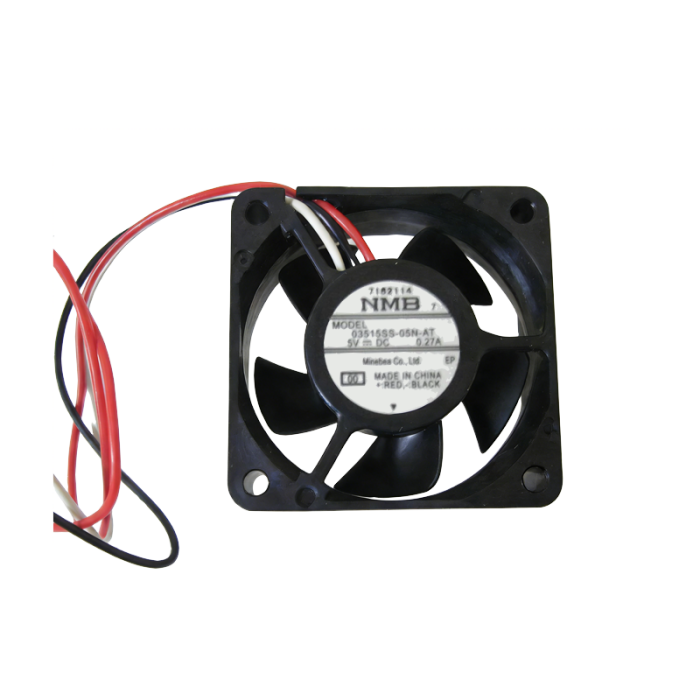

NMB Fans 03515SS-05N-AL-00
More Information
| Brand | NMB |
|---|---|
| Model Number | 03515SS-05N-AL-00 |
| Type | DC Axial Fans |
| Series | 03515SS |
| Frame Size | 35x35x15mm |
| Bearing Type | Sleeve |
| Voltage | 5 VDC |
| Current | 0.180A |
| Speed | 8000 RPM |
| Power | 0.9 W |
| Air Flow | 5.7 CFM (0.160m³/min) |
| Static Pressure | 0.141 InH₂O (35.1 Pa) |
| Noise | 24 dBA |
| Expected life | 30000 Hours at 40°C |
| Terminals | 3 Wire Leads |
| Operating Temperature | -10 ~ 70ºC |
| Housing Material | Frame:Plastic;Blade:Plastic |
