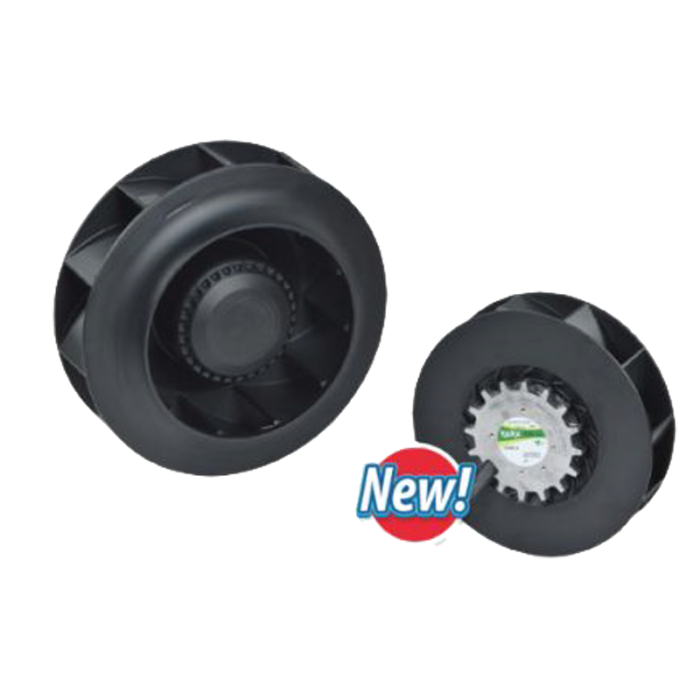

KAKU Fans KU225A2600E2B
KAKU KU225A2600E2B 225x93.5mm KU225A Series DC&EC Centrifugal Fans
- SKU
- KUF-274
There is no price at present, please contact us.
More Information
| Brand | KAKU |
|---|---|
| Model Number | KU225A2600E2B |
| Type | DC&EC Centrifugal Fans |
| Series | KU225A |
| Frame Size | 225x93.5mm |
| Bearing Type | Dual Sealed Ball |
| Voltage | 230 VAC |
| Current | 0.77 A |
| Speed | 2600 RPM |
| Power | 103 W |
| Air Flow | 657 CFM |
| Static Pressure | 2.56 InH₂O |
| Noise | 77 dBA |
| Leadwire length | 450mm |
| IP rating | IP55 |
| Operating Temperature | -10ºC to +70ºC |
| Frequency | 50-60 Hz |
| Housing Material | Impeller: Mg.Alloy integrated die-casting,surface treatment(ED coating+powder coating) |
