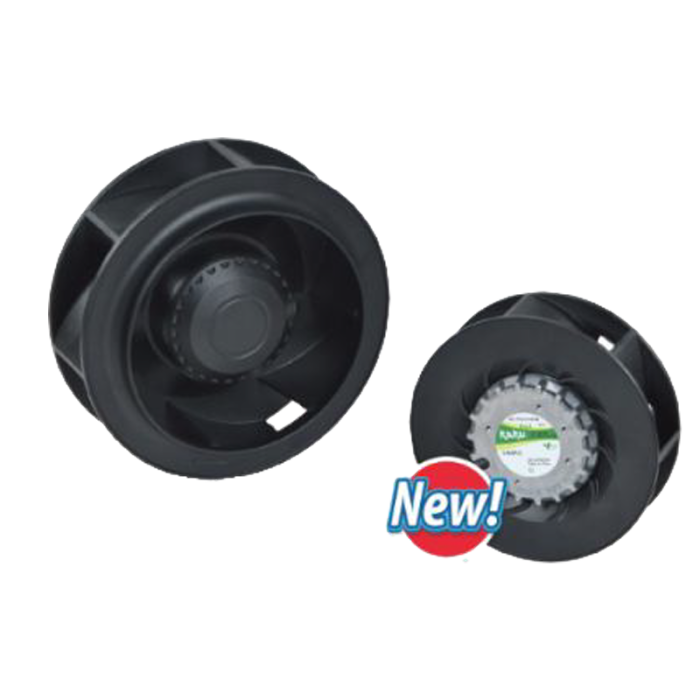

KAKU Fans KU175A3000E0B
KAKU KU175A3000E0B 175x70mm KU175A Series DC&EC Centrifugal Fans
- SKU
- KUF-324
There is no price at present, please contact us.
More Information
| Brand | KAKU |
|---|---|
| Model Number | KU175A3000E0B |
| Type | DC&EC Centrifugal Fans |
| Series | KU175A |
| Frame Size | 175x70mm |
| Bearing Type | Dual Sealed Ball |
| Voltage | 100-240 VAC |
| Current | 0.5-0.28 A |
| Speed | 3000 RPM |
| Power | 32 - 36 W |
| Air Flow | 315 CFM |
| Static Pressure | 1.43 InH₂O |
| Noise | 69 dBA |
| Leadwire length | 450mm |
| IP rating | IP55 |
| Operating Temperature | -10ºC to +70ºC |
| Frequency | 50-60 Hz |
| Housing Material | Impeller: Mg.Alloy integrated die-casting,surface treatment(ED coating+powder coating) |
