$30.00
SKU
IAF-1196
Overview

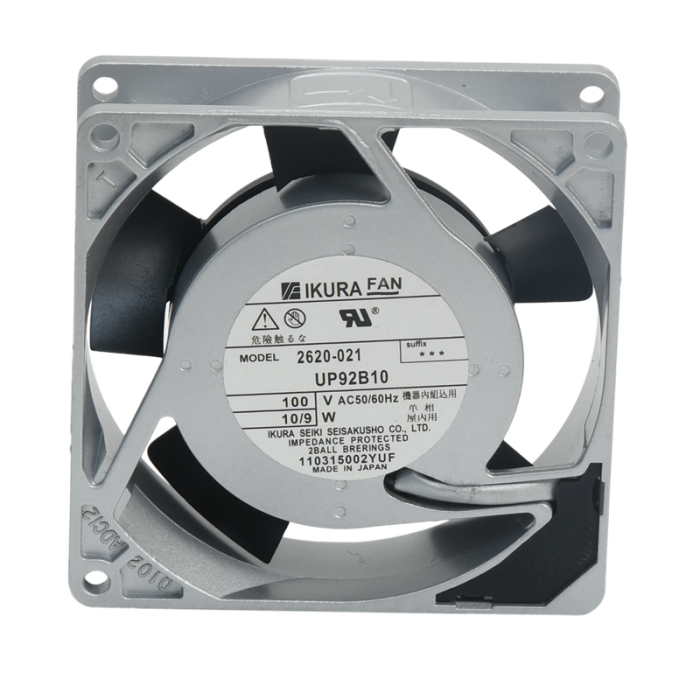

IKURA AC Resin-Blade Axial Fans P92B Series UP92B10
- Mfr. No:UP92B10
- Brand:IKURA
- Product type:
- Datasheet:
| Brand | IKURA |
|---|---|
| Type | AC Resin-Blade Axial Fans |
| Series | P92B |
| Frame Size | 92x25mm |
| Bearing Type | 2Ball |
| Voltage | 100 VAC |
| Speed | 2550/3000 RPM |
| Power | 10/9 W |
| Air Flow | 1/1.2 m³/min |
| Static Pressure | 46/62.7 Pa |
| Noise | 33/36 dBA |
| Approval Agency | UL |
| Operating Temperature | -30～+70ºC/RH20～85% |
| Frequency | 50/60 Hz |
| Housing Material | Standard: Aluminum die-cast unpainted (frame), black synthetic resin (blades) Special:Aluminum die-cast black painted (frame), black synthetic resin (blades) |
