Overview

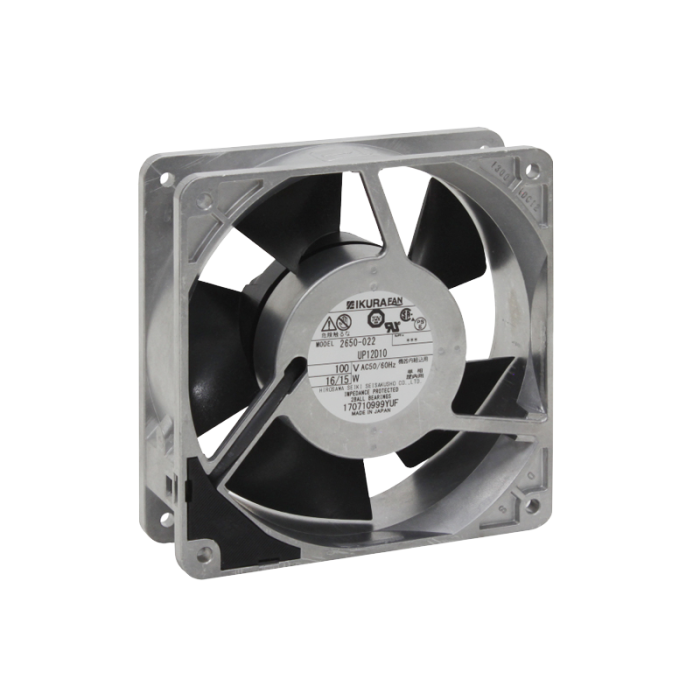

IKURA AC Resin-Blade Axial Fans P12DL Series UP12DL15
- Mfr. No:UP12DL15
- Brand:IKURA
- Product type:
- Datasheet:
| Brand |
IKURA |
| Type |
AC Resin-Blade Axial Fans |
| Series |
P12DL |
| Frame Size |
120x38mm |
| Bearing Type |
2Ball |
| Voltage |
115 VAC |
| Speed |
1900/2000 RPM |
| Power |
13/12 W |
| Air Flow |
1.9/2 m³/min |
| Static Pressure |
39.2/39.2 Pa |
| Noise |
34/35 dBA |
| Approval Agency |
UL |
| Operating Temperature |
-30～+70ºC/RH20～85% |
| Frequency |
50/60 Hz |
| Housing Material |
Standard: Aluminum die-cast unpainted (frame), black synthetic resin (blades) Special:Aluminum die-cast black painted (frame), black synthetic resin (blades) |
