IKURA Fans UP12D22

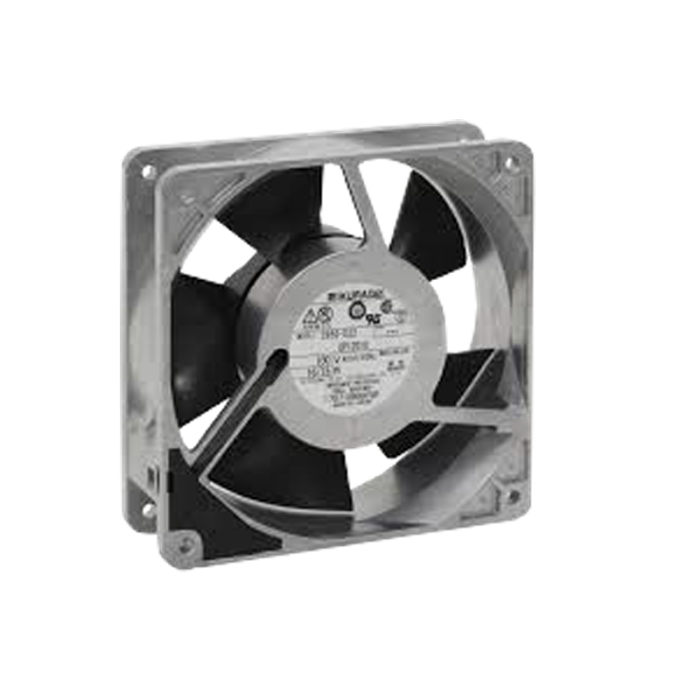

IKURA UP12D22 120x38mm P12D Series AC Resin-Blade Axial Fans
- SKU
- IAF-1219
There is no price at present, please contact us.
More Information
| Brand | IKURA |
|---|---|
| Model Number | UP12D22 |
| Type | AC Resin-Blade Axial Fans |
| Series | P12D |
| Frame Size | 120x38mm |
| Bearing Type | 2Ball |
| Voltage | 220 VAC |
| Speed | 2650/3000 RPM |
| Power | 16/15 W |
| Air Flow | 2.7/3 m³/min |
| Static Pressure | 88.2/65.6 Pa |
| Noise | 42/46 dBA |
| Approval Agency | UL/TUV |
| Operating Temperature | -30～+70ºC/RH20～85% |
| Frequency | 50/60 Hz |
| Housing Material | Standard: Aluminum die-cast unpainted (frame), black synthetic resin (blades) Special:Aluminum die-cast black painted (frame), black synthetic resin (blades) |
