There is no price at present,please contact us.
Overview

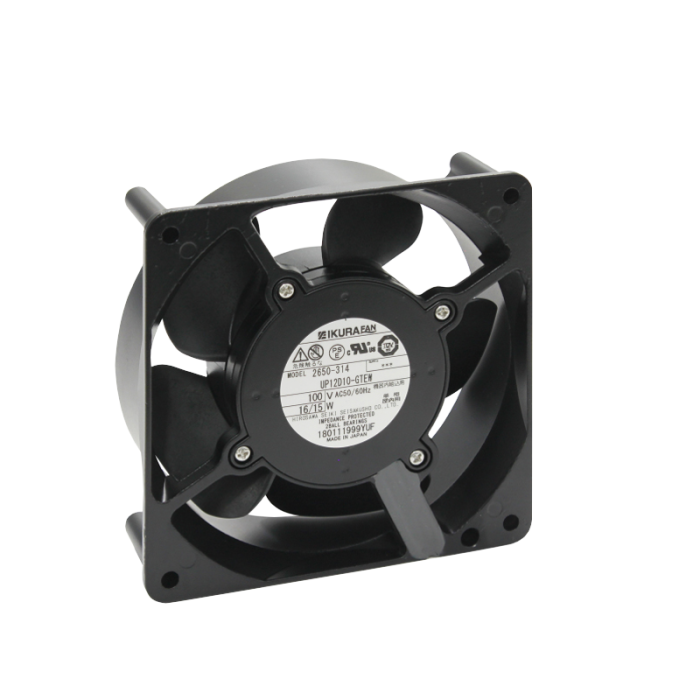

IKURA AC Resin-Blade Axial Fans P12D-GTEW Series UP12D22-GTEW
- Mfr. No:UP12D22-GTEW
- Brand:IKURA
- Product type:
- Datasheet:
| Brand |
IKURA |
| Type |
AC Resin-Blade Axial Fans |
| Series |
P12D-GTEW |
| Frame Size |
120x40mm |
| Bearing Type |
2Ball |
| Voltage |
220 VAC |
| Speed |
2650/3000 RPM |
| Power |
16/15 W |
| Air Flow |
2.5/2.8 m³/min |
| Static Pressure |
73.5/64.6 Pa |
| Noise |
41/45 dBA |
| Approval Agency |
UL/C-UL/TUV |
| IP rating |
IP65 |
| Operating Temperature |
-30ºC～+70ºC/RH98％以下 |
| Frequency |
50/60 Hz |
