IKURA Fans UP12BL20

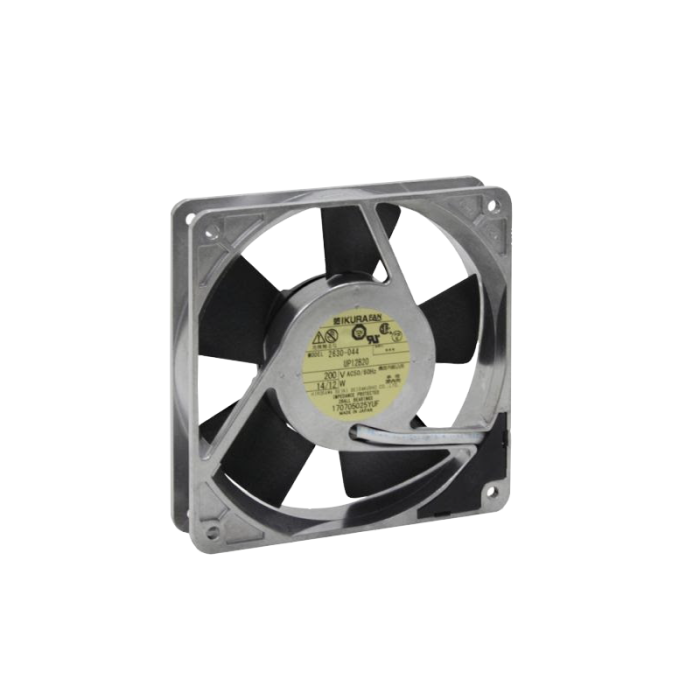

IKURA UP12BL20 120x25mm P12BL Series AC Resin-Blade Axial Fans
- SKU
- IAF-1213
There is no price at present, please contact us.
More Information
| Brand | IKURA |
|---|---|
| Model Number | UP12BL20 |
| Type | AC Resin-Blade Axial Fans |
| Series | P12BL |
| Frame Size | 120x25mm |
| Bearing Type | 2Ball |
| Voltage | 200 VAC |
| Speed | 1600/1800 RPM |
| Power | 9/8 W |
| Air Flow | 1.3/1.5 m³/min |
| Static Pressure | 22/23 Pa |
| Noise | 31/33 dBA |
| Approval Agency | UL |
| Operating Temperature | -30～+70ºC/RH20～85% |
| Frequency | 50/60 Hz |
| Housing Material | Standard: Aluminum die-cast unpainted (frame), black synthetic resin (blades) Special:Aluminum die-cast black painted (frame), black synthetic resin (blades) |
