Overview

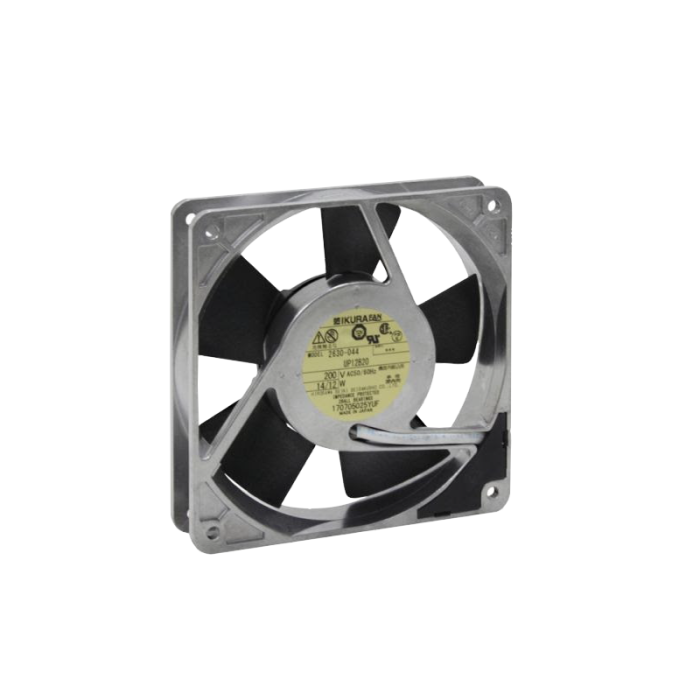

IKURA AC Resin-Blade Axial Fans P12B Series UP12B22
- Mfr. No:UP12B22
- Brand:IKURA
- Product type:
- Datasheet:
| Brand |
IKURA |
| Type |
AC Resin-Blade Axial Fans |
| Series |
P12B |
| Frame Size |
120x25mm |
| Bearing Type |
2Ball |
| Voltage |
220 VAC |
| Speed |
2350/2750 RPM |
| Power |
14/12 W |
| Air Flow |
2/2.3 m³/min |
| Static Pressure |
51.9/44.1 Pa |
| Noise |
39/42 dBA |
| Approval Agency |
UL/TUV |
| Operating Temperature |
-30～+70ºC/RH20～85% |
| Frequency |
50/60 Hz |
| Housing Material |
Standard: Aluminum die-cast unpainted (frame), black synthetic resin (blades) Special:Aluminum die-cast black painted (frame), black synthetic resin (blades) |
