$54.79
SKU
IAF-1208
Overview

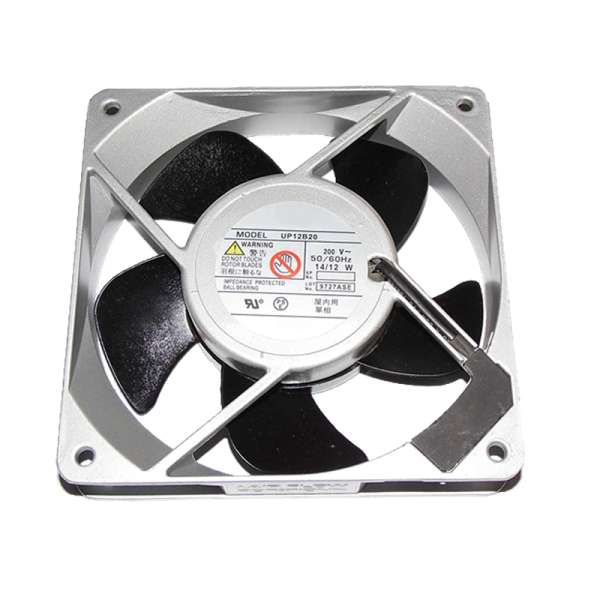

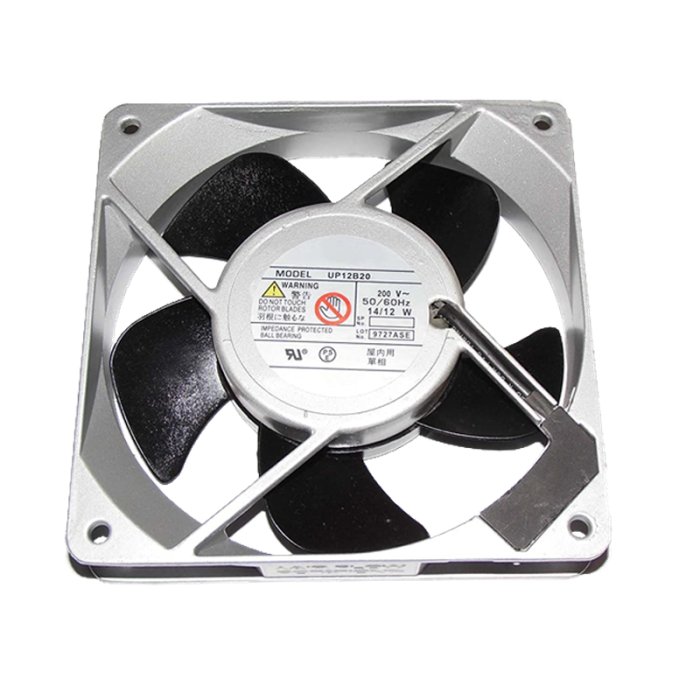

IKURA AC Resin-Blade Axial Fans P12B Series UP12B20
- Mfr. No:UP12B20
- Brand:IKURA
- Product type:
- Datasheet:
| Brand | IKURA |
|---|---|
| Type | AC Resin-Blade Axial Fans |
| Series | P12B |
| Frame Size | 120x25mm |
| Bearing Type | 2Ball |
| Voltage | 200 VAC |
| Speed | 2350/2750 RPM |
| Power | 14/12 W |
| Air Flow | 2/2.3 m³/min |
| Static Pressure | 51.9/44.1 Pa |
| Noise | 39/42 dBA |
| Approval Agency | UL/TUV |
| Operating Temperature | -30～+70ºC/RH20～85% |
| Frequency | 50/60 Hz |
| Housing Material | Standard: Aluminum die-cast unpainted (frame), black synthetic resin (blades) Special:Aluminum die-cast black painted (frame), black synthetic resin (blades) |
