IKURA Fans UP12B15

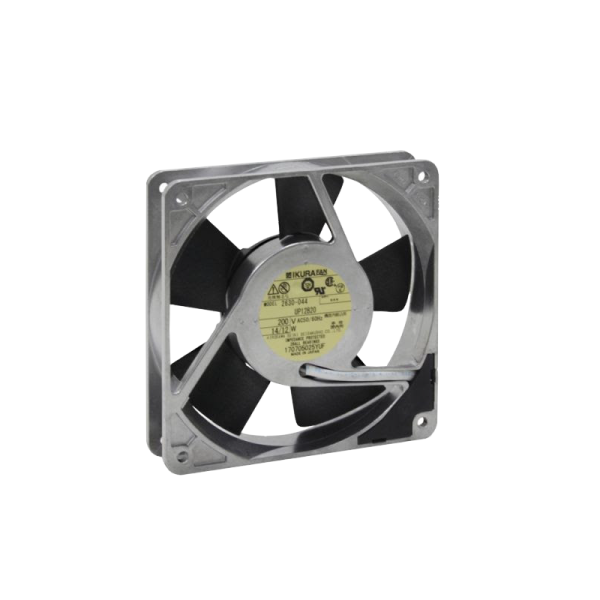

IKURA UP12B15 120x25mm P12B Series AC Resin-Blade Axial Fans
- SKU
- IAF-1207
There is no price at present, please contact us.
More Information
| Brand | IKURA |
|---|---|
| Model Number | UP12B15 |
| Type | AC Resin-Blade Axial Fans |
| Series | P12B |
| Frame Size | 120x25mm |
| Bearing Type | 2Ball |
| Voltage | 115 VAC |
| Speed | 2350/2750 RPM |
| Power | 14/12 W |
| Air Flow | 2/2.3 m³/min |
| Static Pressure | 51.9/44.1 Pa |
| Noise | 39/42 dBA |
| Approval Agency | UL/TUV |
| Operating Temperature | -30～+70ºC/RH20～85% |
| Frequency | 50/60 Hz |
| Housing Material | Standard: Aluminum die-cast unpainted (frame), black synthetic resin (blades) Special:Aluminum die-cast black painted (frame), black synthetic resin (blades) |
