Overview

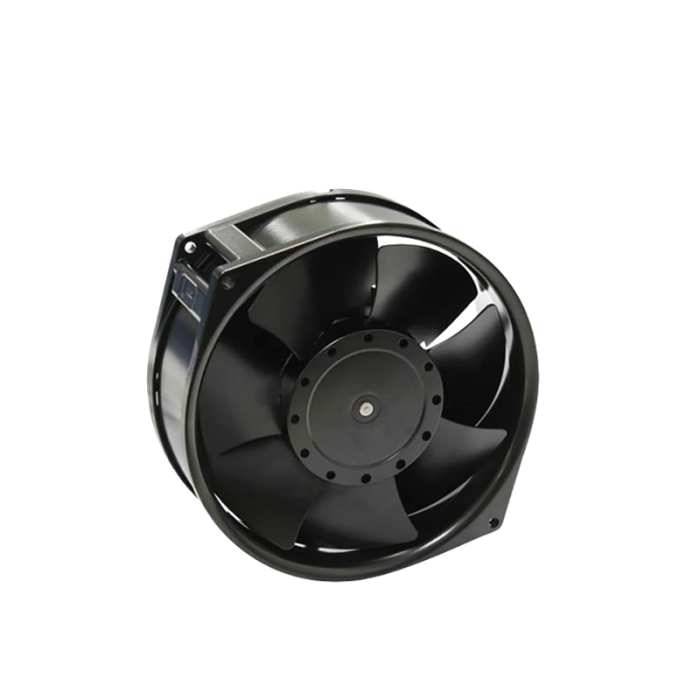

IKURA AC Metal Axial Fans N7506-GT-TP Series UN7506N-GT-TP
- Mfr. No:UN7506N-GT-TP
- Brand:IKURA
- Product type:
- Datasheet:
| Brand |
IKURA |
| Product Type |
Standard type |
| Type |
AC Metal Axial Fans |
| Series |
N7506-GT-TP |
| Frame Size |
Ф150x55mm |
| Bearing Type |
2Ball |
| Voltage |
120 VAC |
| Speed |
2750/3200 RPM |
| Power |
43/40 W |
| Air Flow |
4.9/5.7 m³/min |
| Static Pressure |
129.36/108.78 Pa |
| Noise |
50/54 dBA |
| Approval Agency |
TUV |
| IP rating |
IPX4 |
| Operating Temperature |
-10～+50ºC/RH35～85% |
| Frequency |
50/60 Hz |
| Housing Material |
Aluminum die-cast black painted (frame), metal black painted (blades) |
