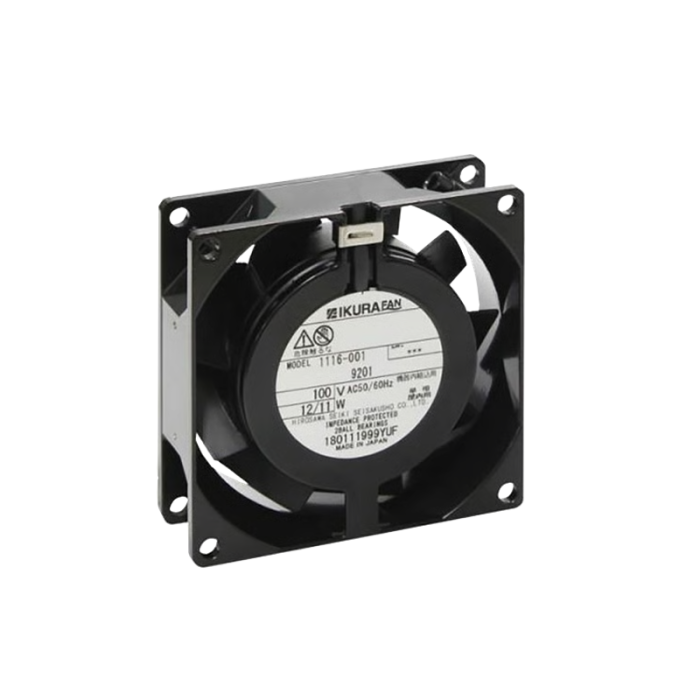

IKURA Fans U9201
IKURA U9201 80x25mm 9201 Series AC Metal Axial Fans
- SKU
- IAF-020
There is no price at present, please contact us.
More Information
| Brand | IKURA |
|---|---|
| Model Number | U9201 |
| Product Type | Standard type |
| Type | AC Metal Axial Fans |
| Series | 9201 |
| Frame Size | 80x25mm |
| Bearing Type | 2Ball |
| Voltage | 100 VAC |
| Speed | 2450/2900 RPM |
| Power | 12/11 W |
| Air Flow | 0.53/0.65 m³/min |
| Static Pressure | 35.28/49.98 Pa |
| Noise | 36/39 dBA |
| Approval Agency | UL |
| Operating Temperature | -10～+70ºC/RH35～85% |
| Frequency | 50/60 Hz |
| Housing Material | Standard: Aluminum die-cast black painted (frame), metal black painted (blades) Special:Aluminum die-cast unpainted (frame), metal black painted (blades) |
