IKURA Fans U6550G1-TP-OT1

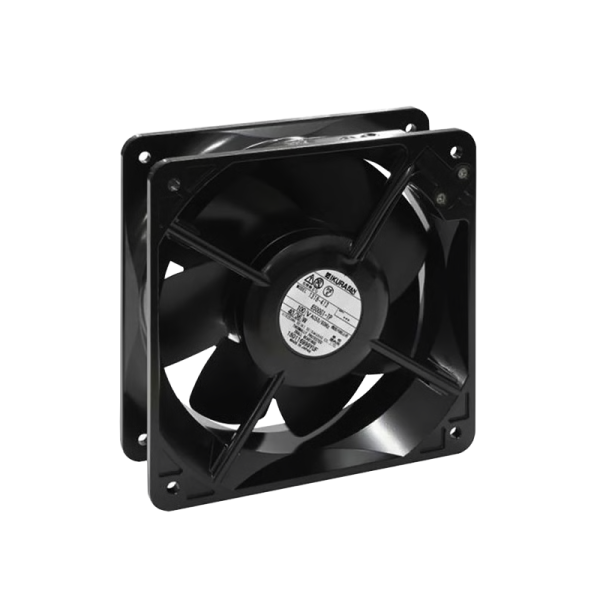

IKURA U6550G1-TP-OT1 160x55mm 6500G1-TP Series AC Metal Axial Fans
- SKU
- IAF-348
There is no price at present, please contact us.
More Information
| Brand | IKURA |
|---|---|
| Model Number | U6550G1-TP-OT1 |
| Product Type | Oil mist type |
| Type | AC Metal Axial Fans |
| Series | 6500G1-TP |
| Frame Size | 160x55mm |
| Bearing Type | 2Ball |
| Voltage | 200 VAC |
| Speed | 2800/3200 RPM |
| Power | 40/36 W |
| Air Flow | 5.1/5.9 m³/min |
| Static Pressure | 149.94/111.72 Pa |
| Noise | 56/61 dBA |
| Approval Agency | UL/C-UL/TUV |
| IP rating | IPX4 |
| Operating Temperature | -10～+60ºC/RH35～85% |
| Frequency | 50/60 Hz |
| Housing Material | Standard: Aluminum die-cast black painted (frame), metal black painted (blades) Special:Aluminum die-cast unpainted (frame), metal black painted (blades) |
