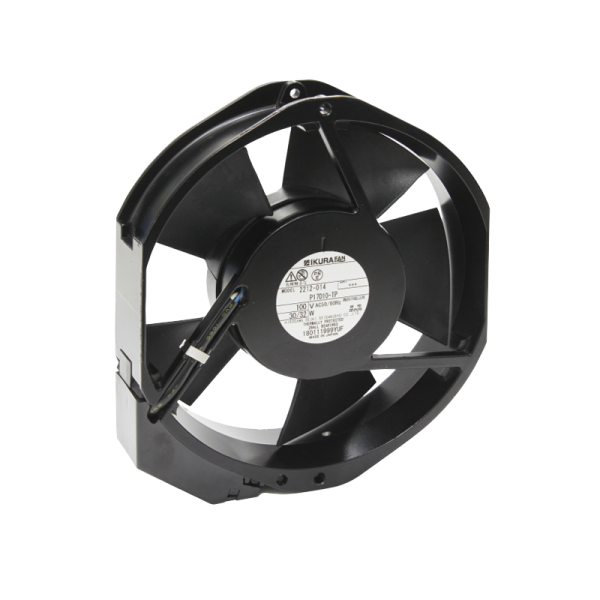

IKURA AC Resin-Blade Axial Fans P17D10-TP Series P17D23-TP
- Mfr. No:P17D23-TP
- Brand:IKURA
- Product type:
- Datasheet:
| Brand |
IKURA |
| Product Type |
Standard type |
| Type |
AC Resin-Blade Axial Fans |
| Series |
P17D10-TP |
| Frame Size |
Ф172x150x38mm |
| Bearing Type |
2Ball |
| Voltage |
230 VAC |
| Speed |
2800/3300 RPM |
| Power |
30/32 W |
| Air Flow |
5.7/6.7 m³/min |
| Static Pressure |
172/217 Pa |
| Noise |
52/57 dBA |
| Operating Temperature |
-10～+70ºC/RH35～85% |
| Frequency |
50/60 Hz |
| Housing Material |
Standard: Aluminum die-cast unpainted (frame), black synthetic resin (blades) Special:Aluminum die-cast black painted (frame), black synthetic resin (blades) |
