Overview

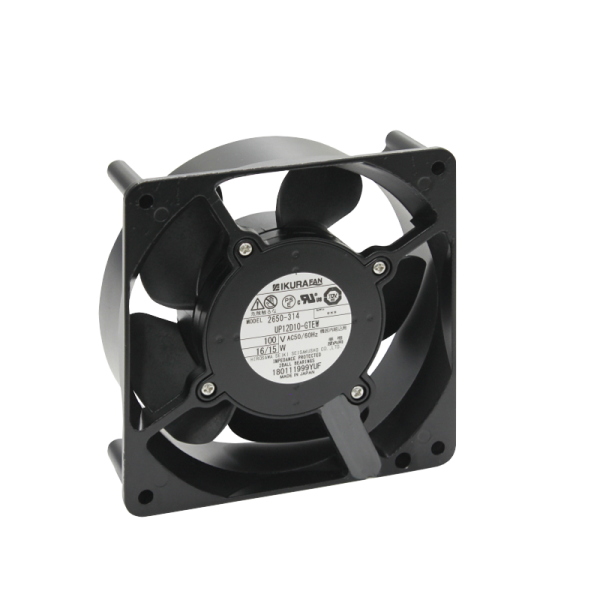

IKURA AC Resin-Blade Axial Fans P12DL-GTEW Series P12DL22-GTEW
- Mfr. No:P12DL22-GTEW
- Brand:IKURA
- Product type:
- Datasheet:
| Brand |
IKURA |
| Type |
AC Resin-Blade Axial Fans |
| Series |
P12DL-GTEW |
| Frame Size |
120x40mm |
| Bearing Type |
2Ball |
| Voltage |
220 VAC |
| Speed |
2100/2200 RPM |
| Power |
14/12 W |
| Air Flow |
1.9/1.9 m³/min |
| Static Pressure |
35.2/33.3 Pa |
| Noise |
36/37 dBA |
| IP rating |
IP65 |
| Operating Temperature |
-30ºC～+70ºC/RH98％以下 |
| Frequency |
50/60 Hz |
