IKURA Fans DP17205024-3740-126

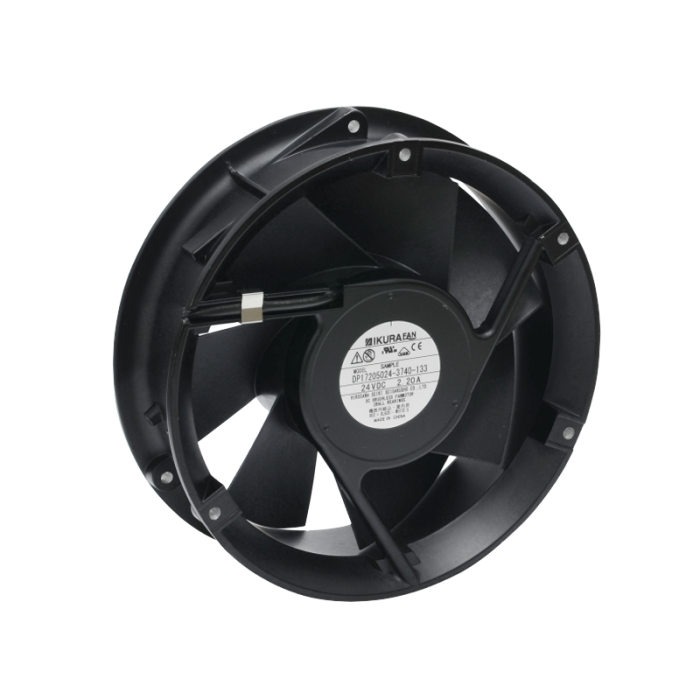

IKURA DP17205024-3740-126 Ф172x50mm DP172050 Series DC Resin-Blade Axial Fans
- SKU
- IAF-1475
There is no price at present, please contact us.
More Information
| Brand | IKURA |
|---|---|
| Model Number | DP17205024-3740-126 |
| Type | DC Resin-Blade Axial Fans |
| Series | DP172050 |
| Frame Size | Ф172x50mm |
| Bearing Type | 2Ball |
| Voltage | 24 VDC |
| Current | 1.1 A |
| Speed | 3750 RPM |
| Air Flow | 8 m³/min |
| Static Pressure | 232 Pa |
| Noise | 56 dBA |
| Approval Agency | C-UL/CE |
| Operating Temperature | -10～+70ºC/RH35～85% |
| Housing Material | Aluminum die-cast unpainted (frame), black synthetic resin (blades) |
