IKURA Fans DP15005024-3730-132

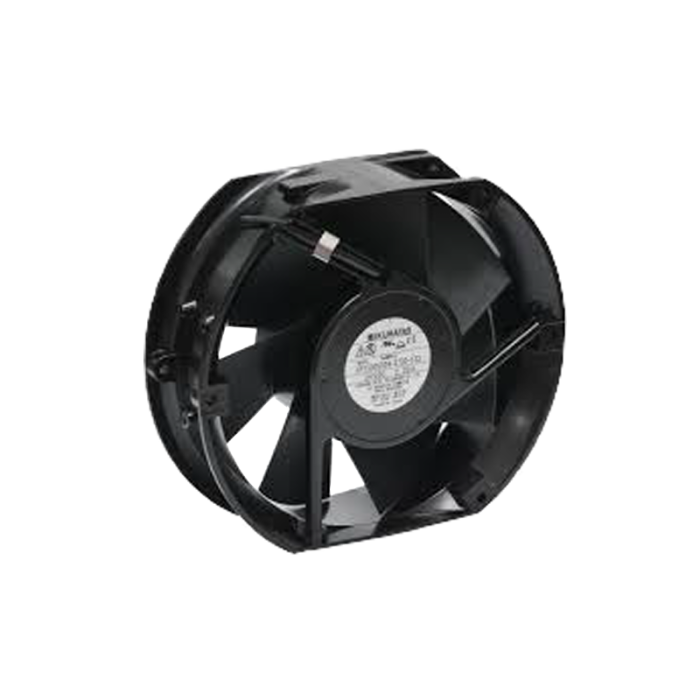

IKURA DP15005024-3730-132 Ф172x150x50mm DP150050 Series DC Resin-Blade Axial Fans
- SKU
- IAF-1469
There is no price at present, please contact us.
More Information
| Brand | IKURA |
|---|---|
| Model Number | DP15005024-3730-132 |
| Type | DC Resin-Blade Axial Fans |
| Series | DP150050 |
| Frame Size | Ф172x150x50mm |
| Bearing Type | 2Ball |
| Voltage | 24 VDC |
| Current | 1.8 A |
| Speed | 4600 RPM |
| Air Flow | 9.8 m³/min |
| Static Pressure | 312 Pa |
| Noise | 68 dBA |
| Approval Agency | C-UL/CE |
| Operating Temperature | -10～+70ºC/RH35～85% |
| Housing Material | Aluminum die-cast unpainted (frame), black synthetic resin (blades) |
