IKURA Fans DP12003824-3690-132

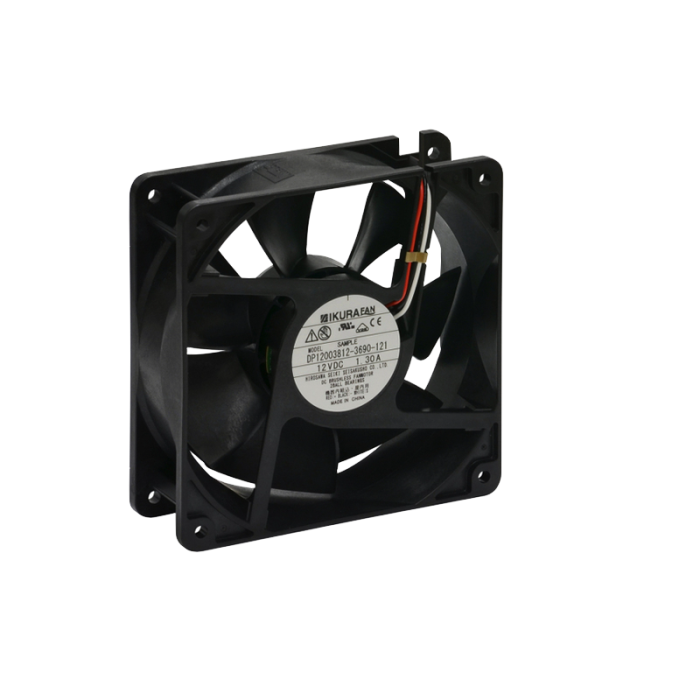

IKURA DP12003824-3690-132 120x38mm DP120038 Series DC Resin-Blade Axial Fans
- SKU
- IAF-1413
There is no price at present, please contact us.
More Information
| Brand | IKURA |
|---|---|
| Model Number | DP12003824-3690-132 |
| Type | DC Resin-Blade Axial Fans |
| Series | DP120038 |
| Frame Size | 120x38mm |
| Bearing Type | 2Ball |
| Voltage | 24 VDC |
| Current | 0.5 A |
| Speed | 3600 RPM |
| Air Flow | 3.68 m³/min |
| Static Pressure | 110 Pa |
| Noise | 50 dBA |
| Approval Agency | C-UL/CE |
| Operating Temperature | -10～+40ºC/RH35～85% |
| Housing Material | Black synthetic resin (frame and blades) |
