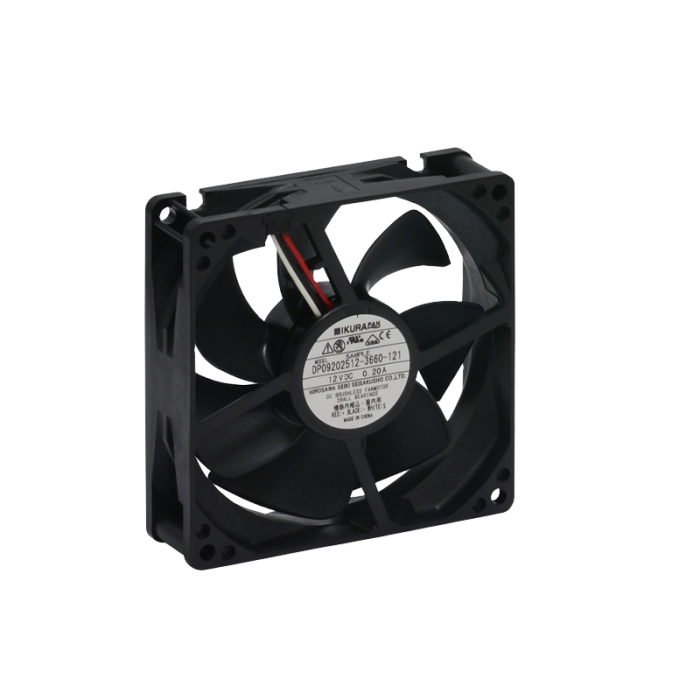

IKURA Fans DP09202512-3660-424
IKURA DP09202512-3660-424 92x25mm DP092025 Series DC Resin-Blade Axial Fans
- SKU
- IAF-1374
There is no price at present, please contact us.
More Information
| Brand | IKURA |
|---|---|
| Model Number | DP09202512-3660-424 |
| Type | DC Resin-Blade Axial Fans |
| Series | DP092025 |
| Frame Size | 92x25mm |
| Bearing Type | 2Ball |
| Voltage | 12 VDC |
| Current | 0.72 A |
| Speed | 5600 RPM |
| Air Flow | 2.73 m³/min |
| Static Pressure | 150 Pa |
| Noise | 51 dBA |
| Approval Agency | C-UL/CE |
| Operating Temperature | -10～+70ºC/RH35～85% |
| Housing Material | Black synthetic resin (frame and blades) |
