Overview

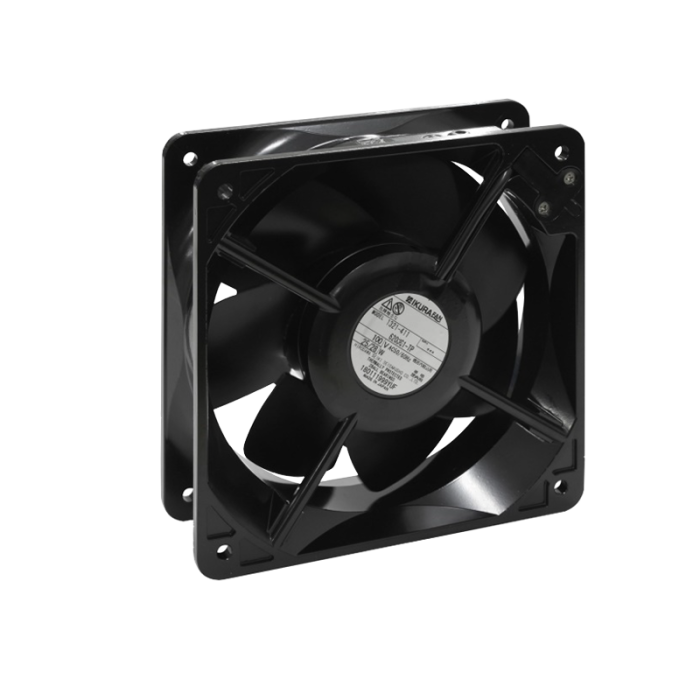

IKURA AC Metal Axial Fans 6207G1-TP Series 6207G1-TP
- Mfr. No:6207G1-TP
- Brand:IKURA
- Product type:
- Datasheet:
| Brand |
IKURA |
| Type |
AC Metal Axial Fans |
| Series |
6207G1-TP |
| Frame Size |
160x55mm |
| Bearing Type |
2Ball |
| Voltage |
100 VAC |
| Speed |
2900/3400 RPM |
| Power |
18/20 W |
| Air Flow |
5.2/6.2 m³/min |
| Static Pressure |
169.8/153.8 Pa |
| Noise |
56/61 dBA |
| IP rating |
IPX4 |
| Operating Temperature |
-10～+100ºC/RH35～85% |
| Frequency |
50/60 Hz |
| Housing Material |
Aluminum die-cast black painted (frame), metal black painted (blades) |
