Overview

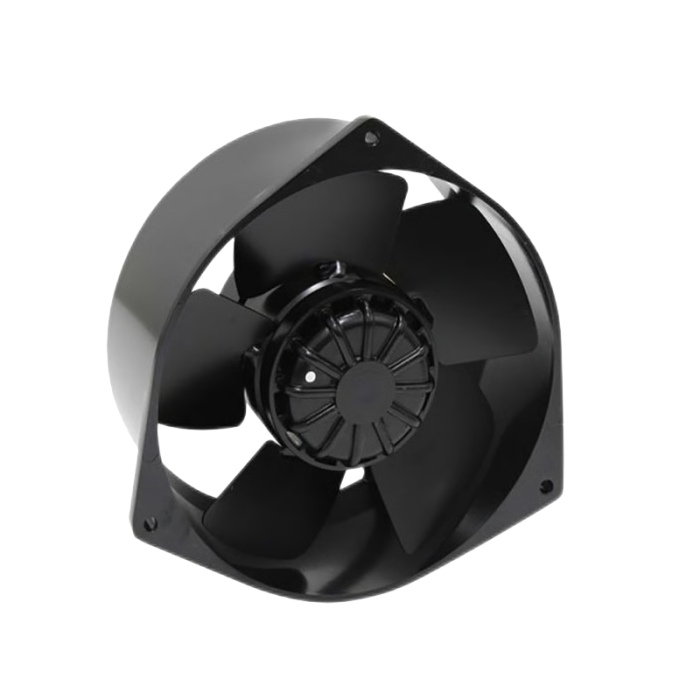

IKURA AC Metal Axial Fans 200-59-5-3TP Series 200-79-5-3TP
Mfr. No: 200-79-5-3TP Brand: IKURA Product type: Datasheet:
Brand
IKURA
Product Type
Standard type
Type
AC Metal Axial Fans
Series
200-59-5-3TP
Frame Size
Ф200x83mm
Bearing Type
2Ball
Voltage
3Ф-230 VAC
Speed
2900/3400 RPM
Power
38/47 W
Air Flow
11.2/13.4 m³/min
Static Pressure
245.9/302.8 Pa
Noise
60/65 dBA
Operating Temperature
-10～+70ºC/RH35～85%
Frequency
50/60 Hz
Housing Material
Standard: Aluminum die-cast black painted (frame), metal black painted (blades) Special:Aluminum die-cast unpainted (frame), metal black painted (blades)
