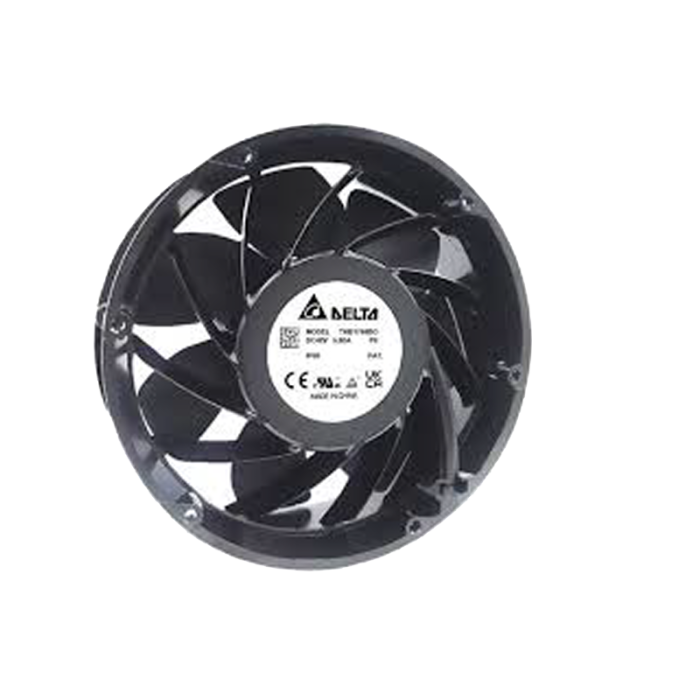

Delta Fan THB1748BGP6
More Information
| Brand | Delta |
|---|---|
| Model Number | THB1748BGP6 |
| Type | DC Fans |
| Series | THB |
| Frame Size | Round-172mmDiax50.80mm |
| Bearing Type | Ball |
| Voltage | 48 VDC |
| Current | 3.40A |
| Speed | 8000 RPM |
| Power | 163 W |
| Air Flow | 607.1 CFM (17.00m³/min) |
| Static Pressure | 3.828 InH₂O (953.5 Pa) |
| Noise | 77.5 dBA |
| Approval Agency | CE, cURus, TUV |
| Expected life | 70000 Hours at 40°C |
| Terminals | 4 Wire Leads |
| IP rating | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -10 ~ 70ºC |
| Housing Material | Frame:Aluminum;Blade:Plastic |
