Overview

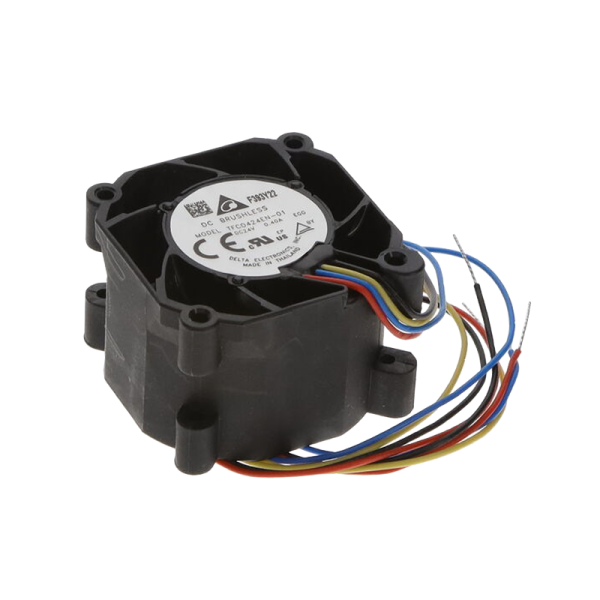

Delta Tubeaxial TFC Series TFC0424EN-01EGG
- Mfr. No:TFC0424EN-01EGG
- Brand:Delta
- Product type:
- Datasheet:
| Brand |
Delta |
| Type |
Tubeaxial |
| Series |
TFC Series |
| Frame Size |
Square-40mm Lx40mm H |
| Bearing Type |
Ball |
| Voltage |
24 VDC |
| Speed |
18300 RPM |
| Power |
6 W |
| Air Flow |
21.1 CFM (0.591m³/min) |
| Static Pressure |
1.979InH₂O(492.9Pa) |
| Noise |
55.0dBA |
| Approval Agency |
CE, CURUS, TUV |
| Terminals |
4 Wire Leads |
| IP rating |
IP67 - Dust Tight, Waterproof |
| Operating Temperature |
-10~+70ºC |
